Mass Air Flow (MAF) Sensor - 3.0L (4V) Removal/Installation

CAUTION:

• The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
   • To install, tighten to 2 N.m {0.2 kgf.m, 18 in.lbf}.
3. To install, reverse the removal procedure.

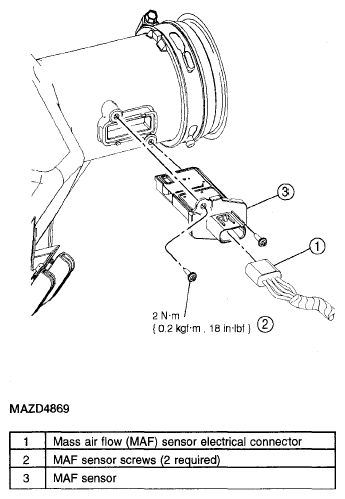

Fig 1: MAF Sensor, Screw, Electrical Connector With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
