Connector End Views - Control Systems - Hybrid

Fig 1: Identifying D - 01 Data Link Connector Terminals
G06156686Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying D140 - 175E Powertrain Control Module Connector Terminals
G05463787Courtesy of MAZDA MOTORS CORP.
Fig 3: Identifying D140 - 175EB Powertrain Control Module Connector Terminals
G05463788Courtesy of MAZDA MOTORS CORP.

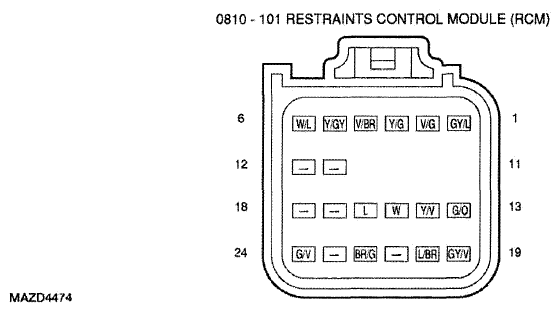

Fig 4: Identifying 0810 - 101 Restraints Control Module Connector Terminals
G06156689Courtesy of MAZDA MOTORS CORP.

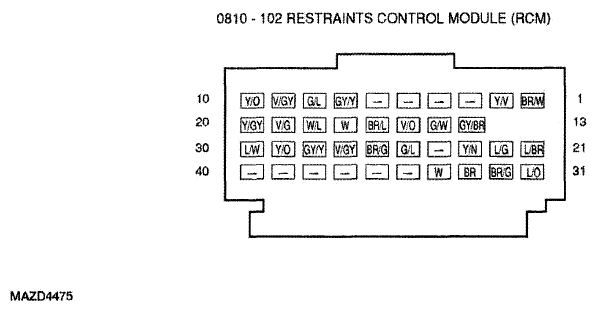

Fig 5: Identifying 0810 - 102 Restraints Control Module Connector Terminals
G06156690Courtesy of MAZDA MOTORS CORP.

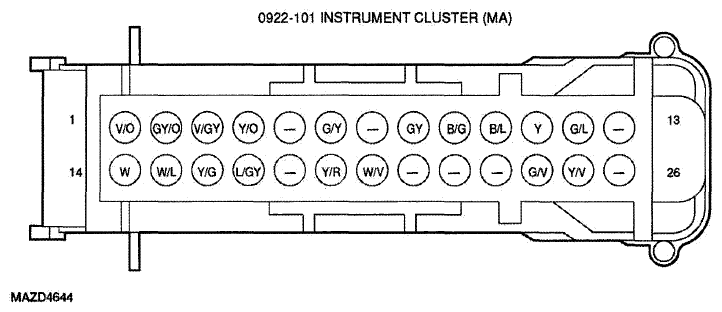

Fig 6: Identifying 0922 - 101 Instrument Cluster (MA) Connector Terminals
G06156667Courtesy of MAZDA MOTORS CORP.

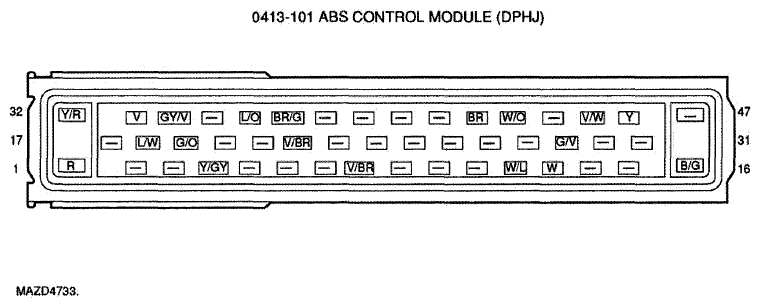

Fig 7: Identifying 0413 - 101 ABS Control Module (DPHJ) Connector Terminals
G06157521Courtesy of MAZDA MOTORS CORP.
Fig 8: Identifying J - 2280A Smart Junction Box Connector Terminals
G06156605Courtesy of MAZDA MOTORS CORP.
Fig 9: Identifying J2280B Smart Junction Box Connector Terminals
G05463798Courtesy of MAZDA MOTORS CORP.
Fig 10: Identifying J2280D Smart Junction Box (RL) Connector Terminals
G05457325Courtesy of MAZDA MOTORS CORP.

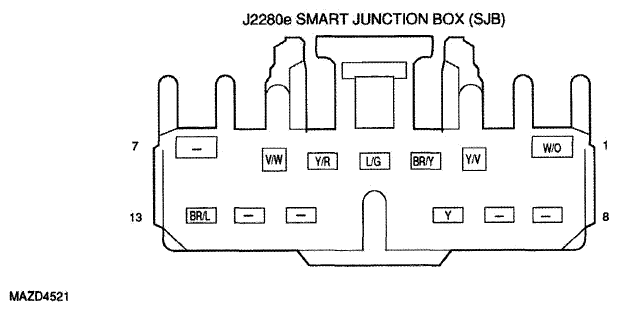

Fig 11: Identifying J2280E Smart Junction Box Connector Terminals
G06156575Courtesy of MAZDA MOTORS CORP.

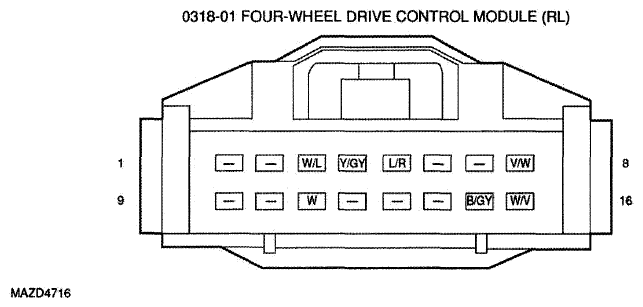

Fig 12: Identifying 0318-01 Four-Wheel Drive Control Module (RL) Connector Terminals
G06157418Courtesy of MAZDA MOTORS CORP.
Fig 13: Identifying 0613 - 01 Power Steering Control Module (MA) Connector Terminals
G06158876Courtesy of MAZDA MOTORS CORP.

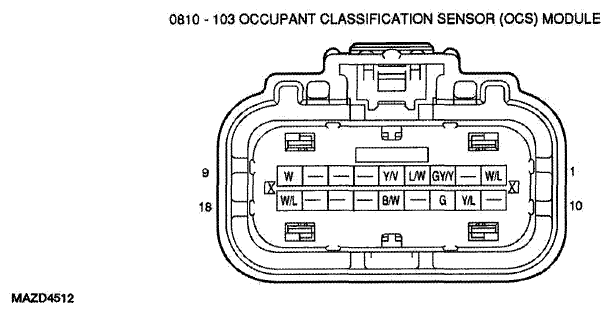

Fig 14: Identifying 0810 - 103 Occupant Classification Sensor (OCS) Module Connector Terminals
G06156423Courtesy of MAZDA MOTORS CORP.
Fig 15: Identifying 0920 - 209 Satellite Radio Receiver (RF) Connector Terminals
G06156700Courtesy of MAZDA MOTORS CORP.
Fig 16: Identifying 0920 - 211 Front Control Interface Module (FCIM) (RF) Connector Terminals
G06156701Courtesy of MAZDA MOTORS CORP.
Fig 17: Identifying 0920 - 212 Front Display Interface Module (FDIM) (MA) Connector Terminals
G06156702Courtesy of MAZDA MOTORS CORP.

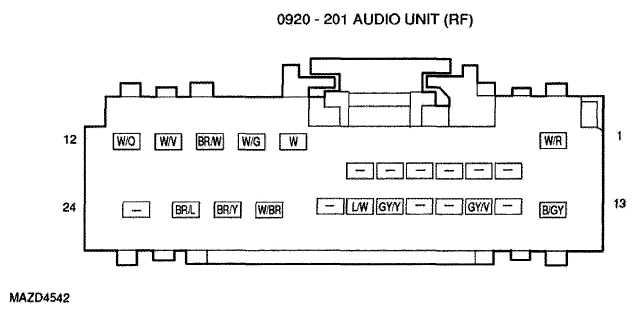

Fig 18: Identifying 0920 - 201 Audio Unit (RF) Connector Terminals
G06156703Courtesy of MAZDA MOTORS CORP.

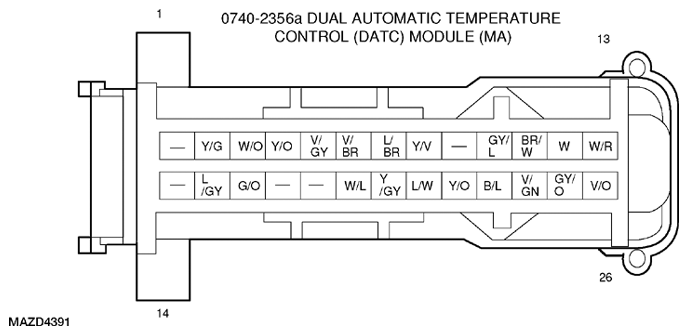

Fig 19: Identifying 0740-2356A Dual Automatic Temperature Control Module (MA) Connector Terminals
G06360133Courtesy of MAZDA MOTORS CORP.

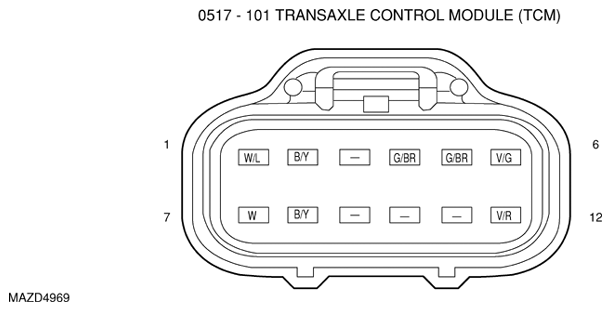

Fig 20: Identifying 0517 - 101 Transaxle Control Module Connector Terminals
G06360134Courtesy of MAZDA MOTORS CORP.

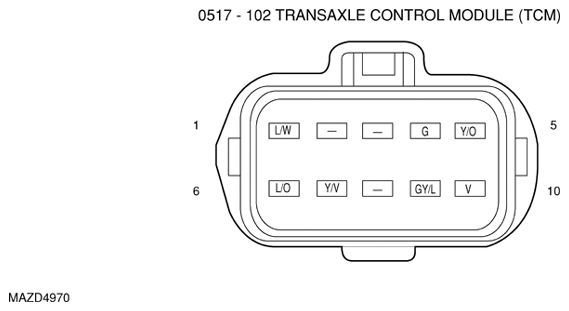

Fig 21: Identifying 0517 - 102 Transaxle Control Module Connector Terminals
G06360135Courtesy of MAZDA MOTORS CORP.

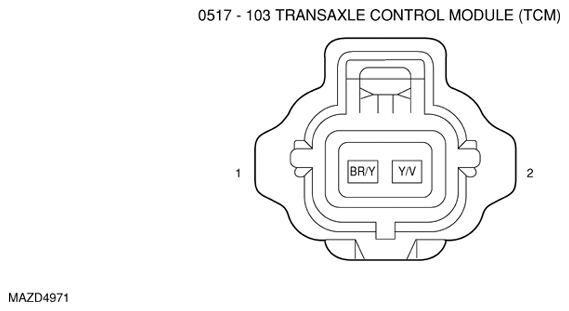

Fig 22: Identifying 0517 - 103 Transaxle Control Module Connector Terminals
G06360136Courtesy of MAZDA MOTORS CORP.

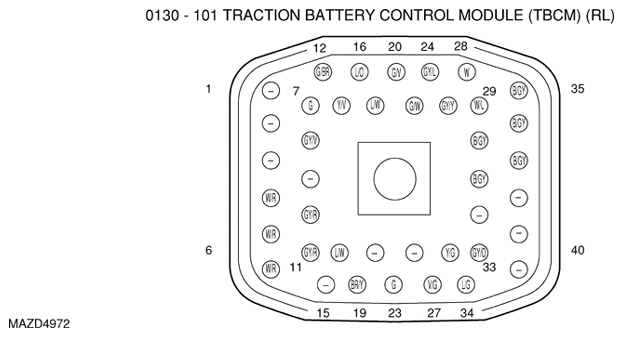

Fig 23: Identifying 0180 - 101 Traction Battery Control Module (RL) Connector Terminals
G06360137Courtesy of MAZDA MOTORS CORP.

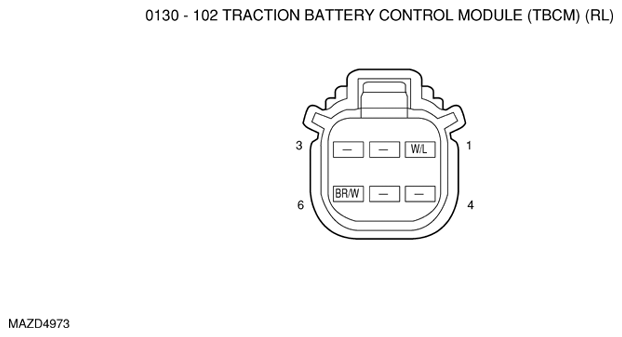

Fig 24: Identifying 0130 - 102 Traction Battery Control Module (RL) Connector Terminals
G06360138Courtesy of MAZDA MOTORS CORP.
