Front Control Interface Module (FCIM) Removal/Installation

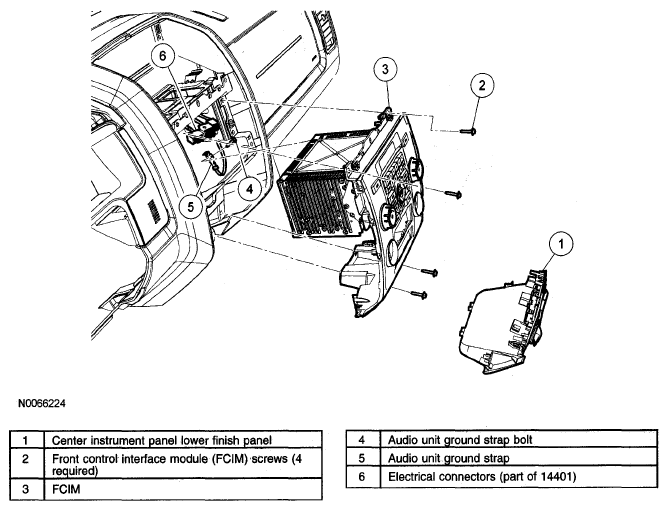

Fig 1: Identifying Front Control Interface Module Components

Courtesy of MAZDA MOTORS CORP.

NOTE:

• The front control interface module (FCIM) and the instrument panel center finish panel cannot be replace individually.

1. Remove the center instrument panel lower finish panel by pulling straight back.
2. Remove the 4 FCIM screws.
3. Remove the bolt and the audio unit ground strap.
   NOTE:

   • Pull the FCIM rearward enough to gain access to the audio unit ground strap.
4. Disconnect the electrical connectors.
5. Remove the climate control assembly. See CLIMATE CONTROL ASSEMBLY REMOVAL/INSTALLATION .
6. Remove the 4 screws (2 on each side) and separate the audio unit from the FCIM.
   Fig 2: Identifying FCIM Screw

   Courtesy of MAZDA MOTORS CORP.
7. To install, reverse the removal procedure.
