Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

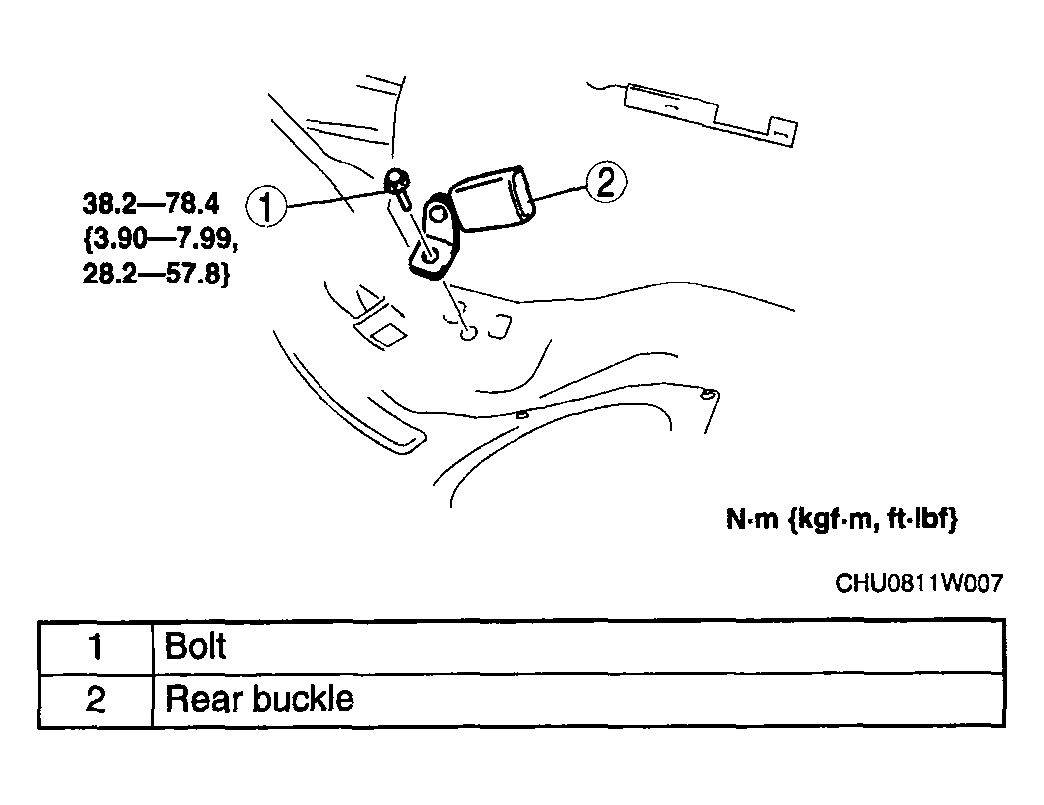

    Fig 1: Removing & Installing Rear Buckle With Torque Specifications
    G04564111Courtesy of MAZDA MOTORS CORP.
