Front Door Glass Removal/Installation

  1. Position the front door glass so that the distance between the top of the front door glass and top of the front beltline molding is 140 mm {5.51 in}.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish.( See INNER GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the hole cover.

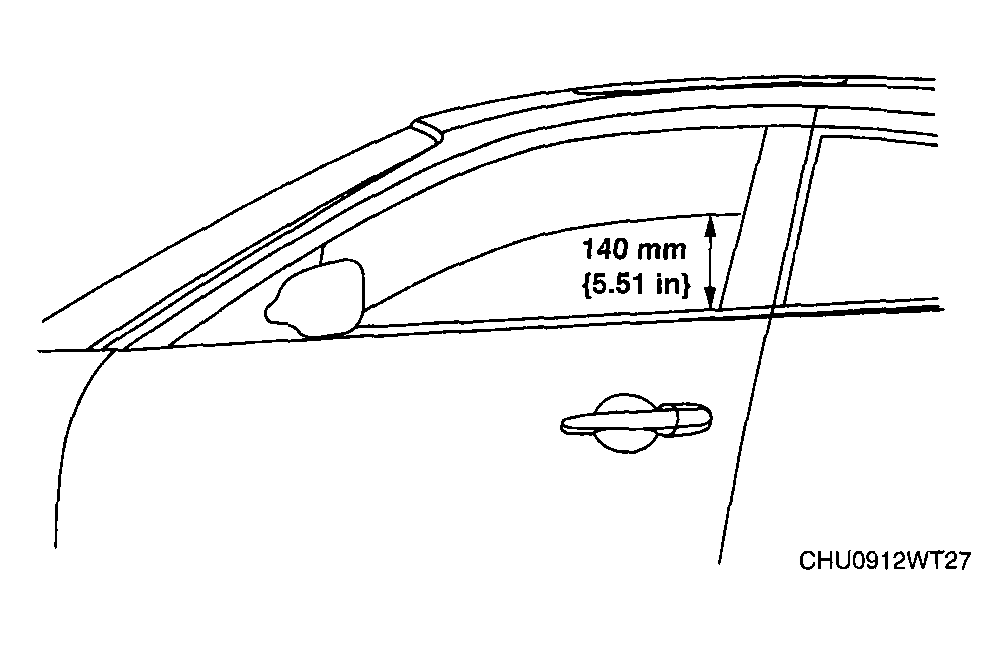

    Fig 1: Measuring Distance Between Top Of Front Door Glass & Top Of Front Beltline Molding
    G04564257Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Lift the front door glass up, then remove it while tilting it in the direction of the arrow.
  8. Install in the reverse order of removal.

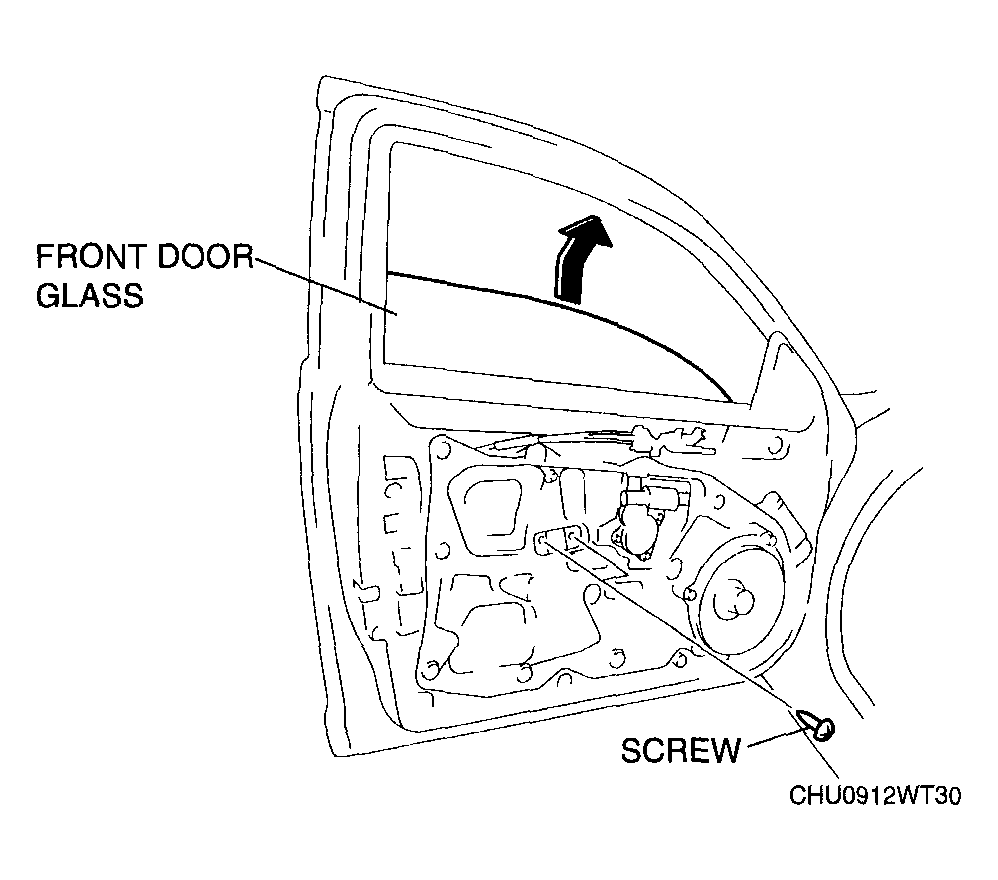

    Fig 2: Removing Front Door Glass
    G04564258Courtesy of MAZDA MOTORS CORP.
