Trunk Key Cylinder Switch Inspection

1. Remove the trunk key cylinder switch.
2. Inspect for continuity between the trunk key cylinder switch terminals.

• If not as specified, replace the trunk key cylinder.

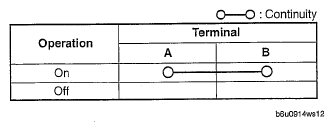

Fig 1: Trunk Key Cylinder Continuity Chart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Trunk Key Cylinder Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
