Power Retractable Hardtop Model (with exterior open function)

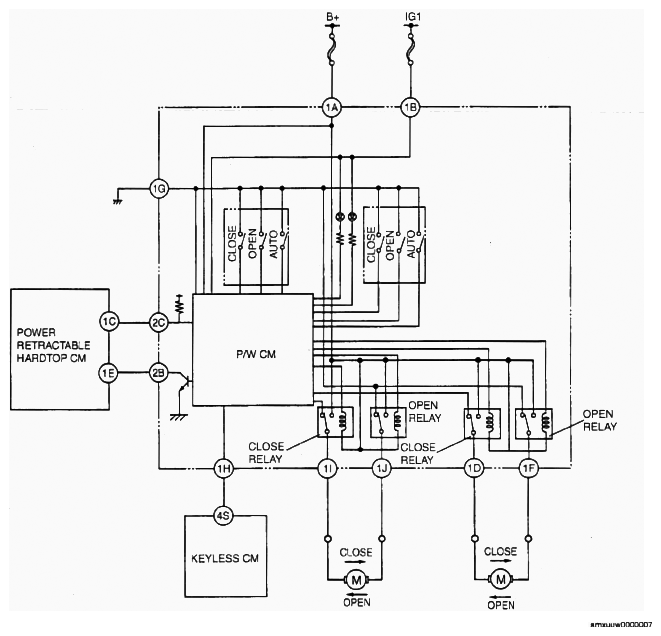

Fig 1: Power Window System Wiring Diagram - Power Retractable Hardtop Model (With Exterior Open Function)

G04931217

Courtesy of MAZDA MOTORS CORP.
