Power Retractable Hardtop Model (without exterior open function)

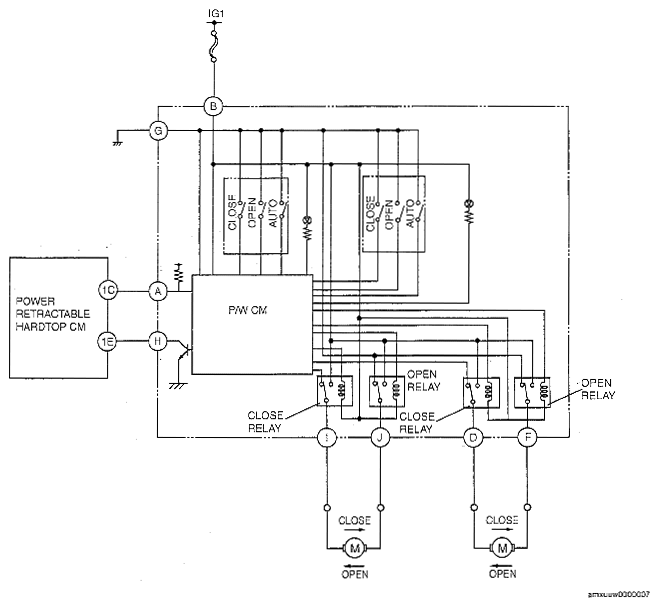

Fig 1: Power Window System Wiring Diagram - Power Retractable Hardtop Model (Without Exterior Open Function)
G04931218Courtesy of MAZDA MOTORS CORP.
