Crankshaft Position (CKP) Sensor Removal/Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the following part for easier access.
    1. Remove the Catalytic Converter (WU-TWC) (LH).(see EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

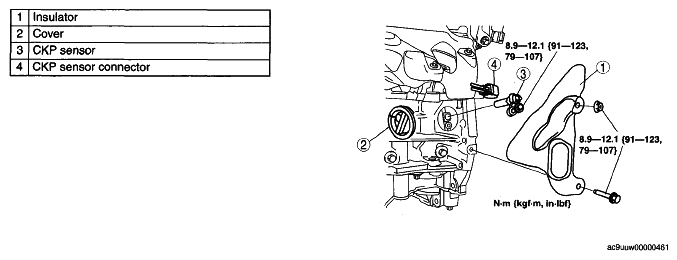

    Fig 1: CKP Sensor And Connector With Torque Specifications
    G04969697Courtesy of MAZDA MOTORS CORP.
