Power Window Subswitch (Passenger side)

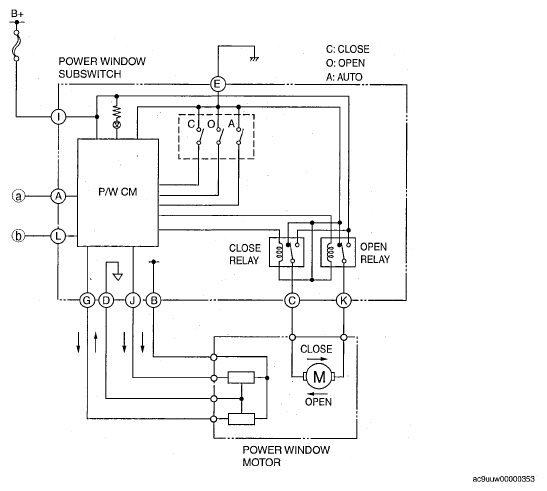

Fig 1: Power Window Subswitch Wiring Diagram

G04971006

Courtesy of MAZDA MOTORS CORP.
