Front Door Glass Removal/Installation

  1. Adjust the door glass position as shown in the figure.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    Fig 1: Identifying Front Door Glass Adjusting Position
    G04971102Courtesy of MAZDA MOTORS CORP.
  6. Remove the hole cover.
  7. Remove the bolts.

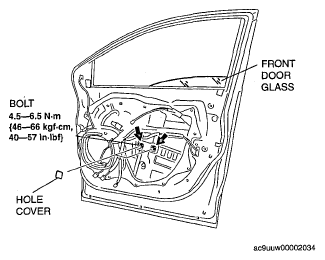

    Fig 2: Hole Cover And Bolts With Torque Specifications
    G04971103Courtesy of MAZDA MOTORS CORP.
  8. Lift the front door glass up and remove it in the direction of the arrow.
  9. Install in the reverse order of removal.
    NOTE:
    • When installing the front door glass, align the glass edge with the glass run channel by hand through the speaker installation hole.

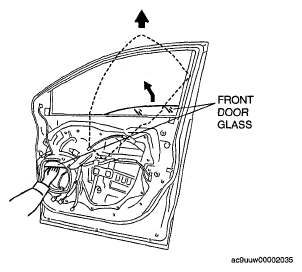

    Fig 3: Lifting Front Door Glass Up
    G04971104Courtesy of MAZDA MOTORS CORP.
