C-03 Front Harness-Rear Harness Connector End View

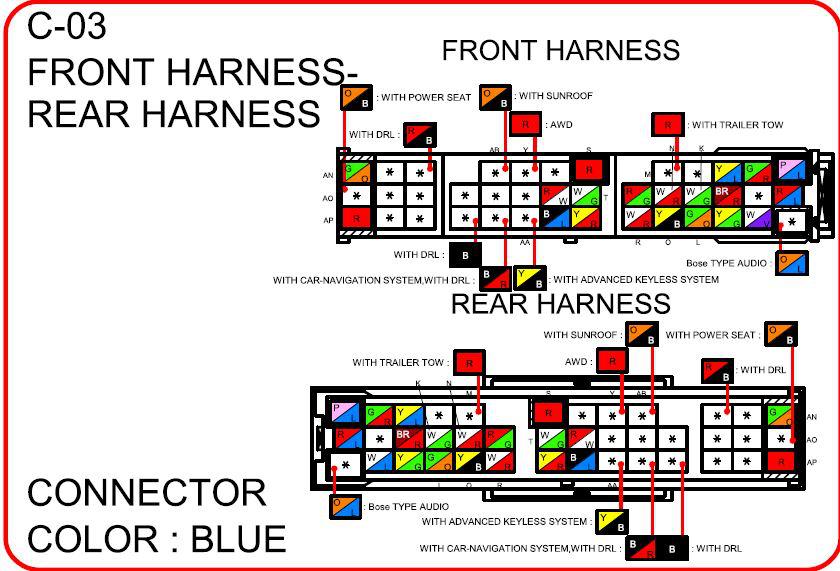

Fig 1: C-03 Front Harness-Rear Harness Connector End View

G00573081

Courtesy of MAZDA MOTORS CORP.
