DTC P0107: Notes

DTC P0107[L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0107 MAP sensor circuit low input
DETECTION CONDITION
  • PCM monitors input voltage from the MAP sensor when the intake air temperature is above -10 °C {14 °F}.  If the input voltage is below 0.10 V  , the PCM determines that the MAP sensor circuit has a malfunction.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTCs are stored in the PCM memory.
POSSIBLE CAUSE
  • MAP sensor malfunction
  • Connector or terminal malfunction
  • Short to ground in the wiring harness between MAP sensor terminal D and PCM terminal 2AG
  • Open circuit in the wiring harness between MAP sensor terminal C and PCM terminal 2AU
  • MAP sensor signal circuit and MAP sensor ground circuit are shorted to each other.
  • PCM malfunction

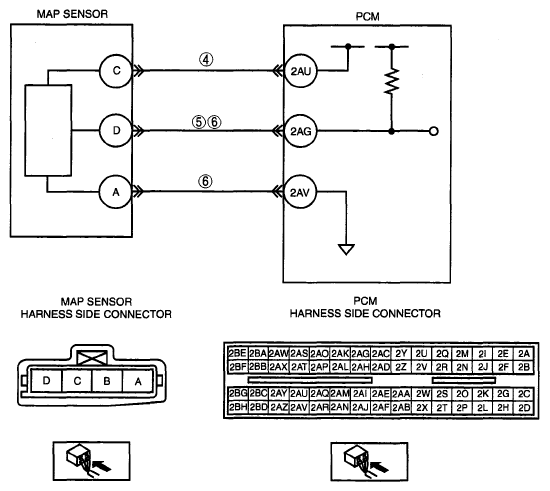

G04859364Courtesy of MAZDA MOTORS CORP.
