Cruise Control Switch Inspection[L3 With TC]

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
  3. Disconnect the cruise control switch connector.
  4. Inspect for resistance and continuity between the cruise control switch terminals using an ohmmeter.
    • If not as specified, replace the cruise control switch.

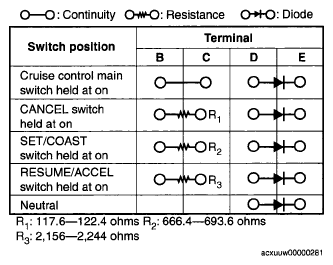

      Fig 1: Cruise Control Switch Continuity And Resistance Chart
      G04859767Courtesy of MAZDA MOTORS CORP.

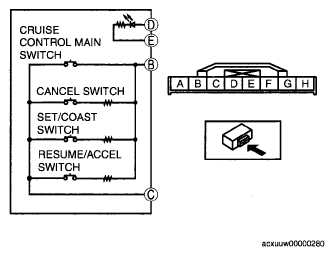

      Fig 2: Identifying Cruise Control Switch Schematic And Connector Terminals
      G04859768Courtesy of MAZDA MOTORS CORP.
