Monitoring System And Control System Device Relationship Chart

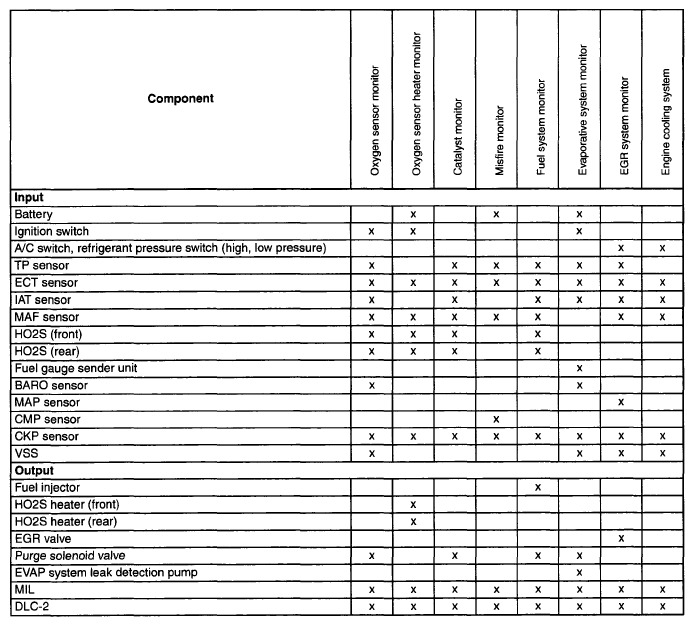

Fig 1: Monitoring System And Control System Device Relationship Chart [L3 With TC]

G04859340

Courtesy of MAZDA MOTORS CORP.
