AWD Control Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the lower panel (Driver's side). (See LOWER PANEL REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

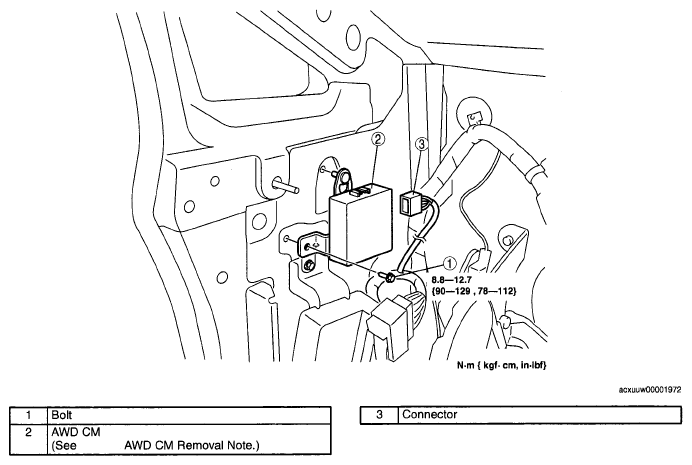

    Fig 1: AWD Control Module Replacement Components With Torque Specifications
    G04860091Courtesy of MAZDA MOTORS CORP.
