Wheel Speed Sensor Connector End View (C160)

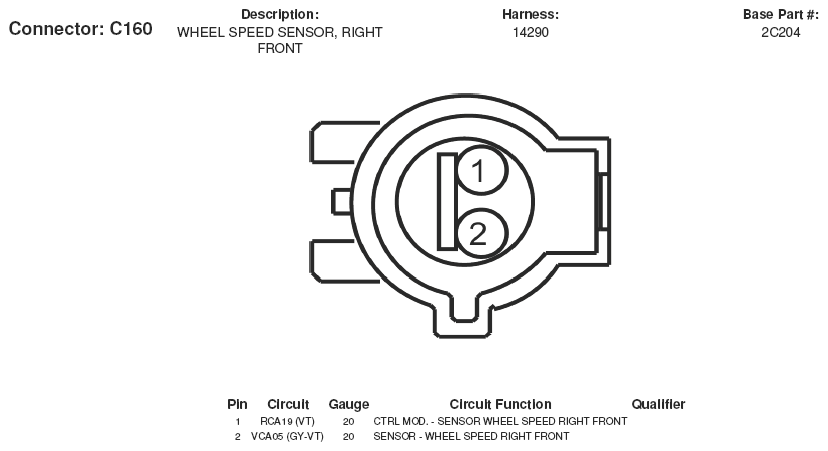

Fig 1: Wheel Speed Sensor Connector End View (C160)

G05169158

Courtesy of FORD MOTOR CO.
