Knock Sensor Connector End View (C108)

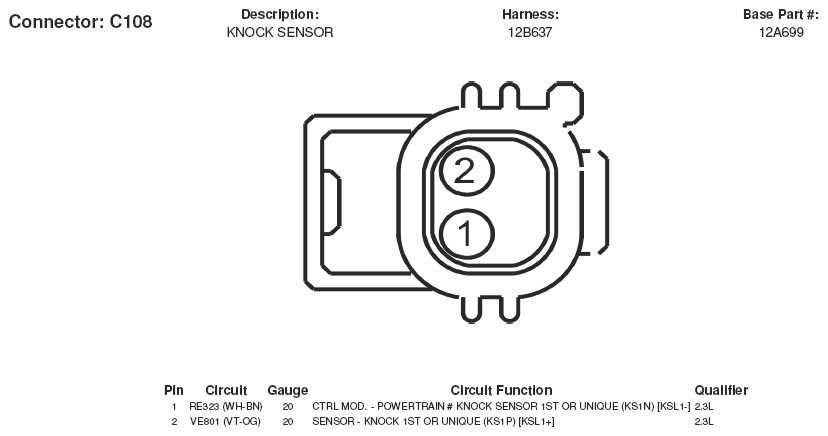

Fig 1: Knock Sensor Connector End View (C108)

G05169142

Courtesy of FORD MOTOR CO.
