Generator Connector End View (C102C)

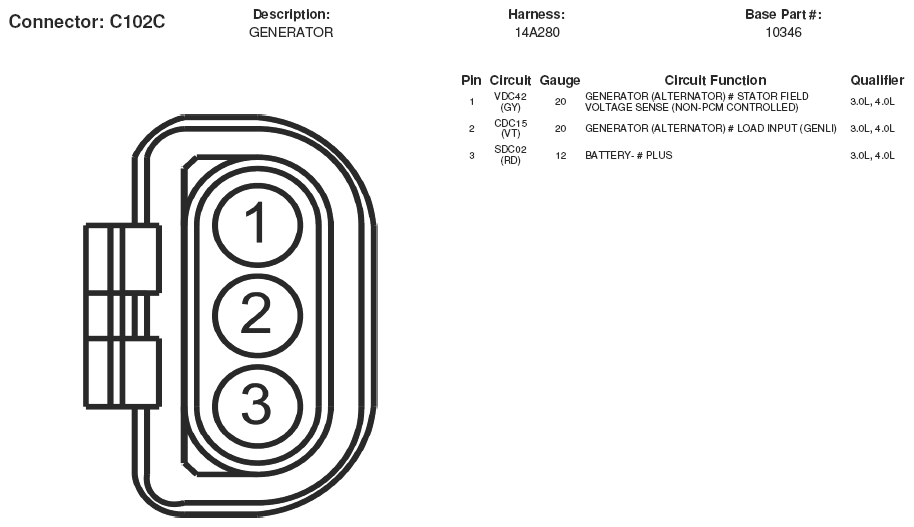

Fig 1: Generator Connector End View (C102C)

G05169138

Courtesy of FORD MOTOR CO.
