Engine Coolant Temperature Sensor Connector End View (C1064)

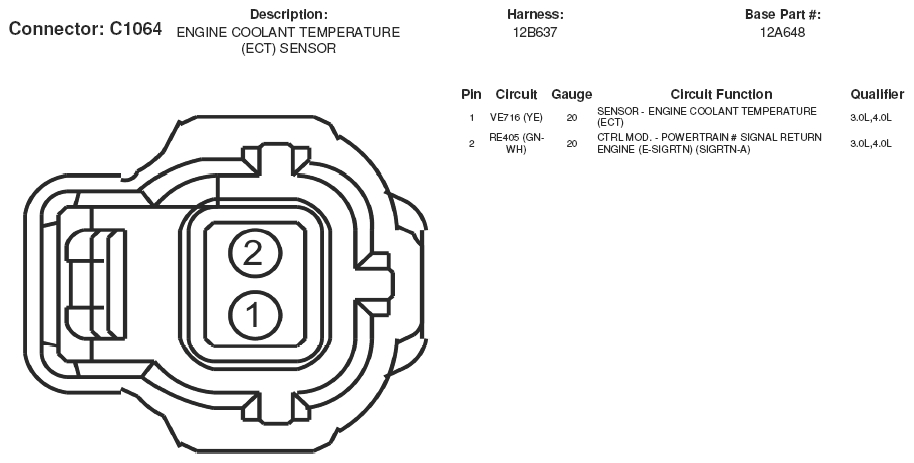

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)

G05169279

Courtesy of FORD MOTOR CO.
