Heater Control Unit Removal / Installation

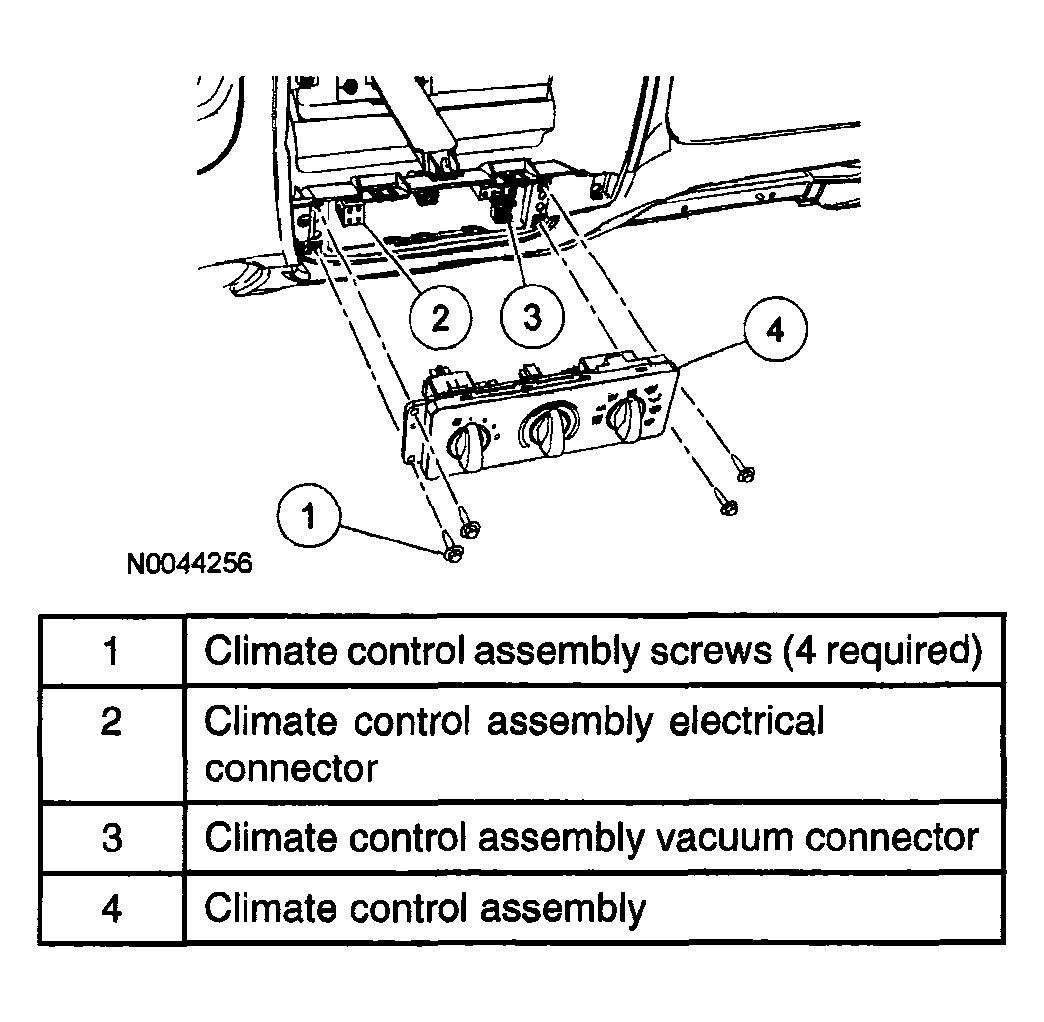

Fig 1: Identifying Heater Control Unit Components

Courtesy of MAZDA MOTORS CORP.

1. 1. Remove the audio unit. See AUDIO UNIT .
2. 2. Remove the screws. Disengage the spring clips. Detach the instrument panel finish panel.

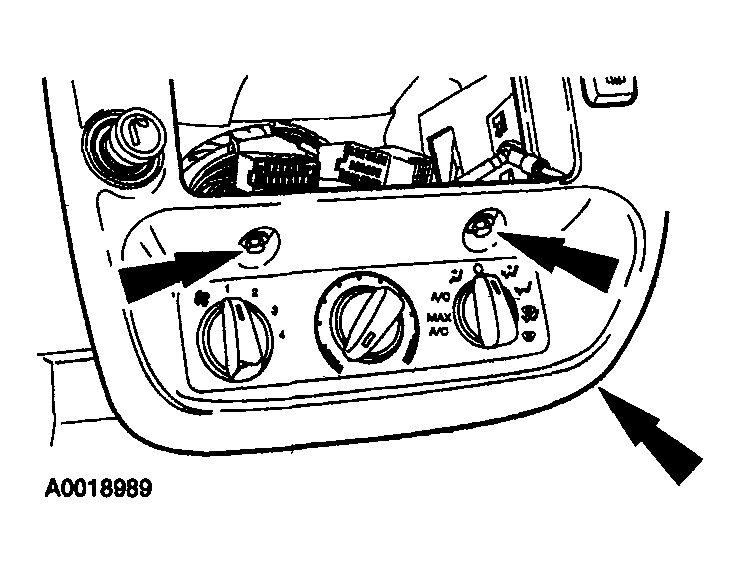

   Fig 2: Detaching Instrument Panel Finish Panel

   Courtesy of MAZDA MOTORS CORP.
3. 3. Disconnect the electrical connectors.
   Fig 3: Disconnecting Electrical Connectors

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The number and location of the electrical connectors will vary dependent on vehicle equipment.
4. 5. Remove the screws and the climate control assembly.
   Fig 4: Removing The Climate Control Assembly Screws With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
5. 6. Disconnect the climate control assembly.
   • Disconnect the electrical connectors.
   • Disconnect the vacuum harness connector.
   NOTE:

   • If installing a new climate control assembly, the function selector switch and the blower motor switch must be transferred from the old unit. See HEATER CONTROL SWITCH REMOVAL / INSTALLATION  .
6. 7. To install, reverse the removal procedure.
