Using the diagnosis index

The symptoms of the malfunctions are listed in the diagnostic index for symptom troubleshooting. The exact malfunction symptoms can be selected by following the index.

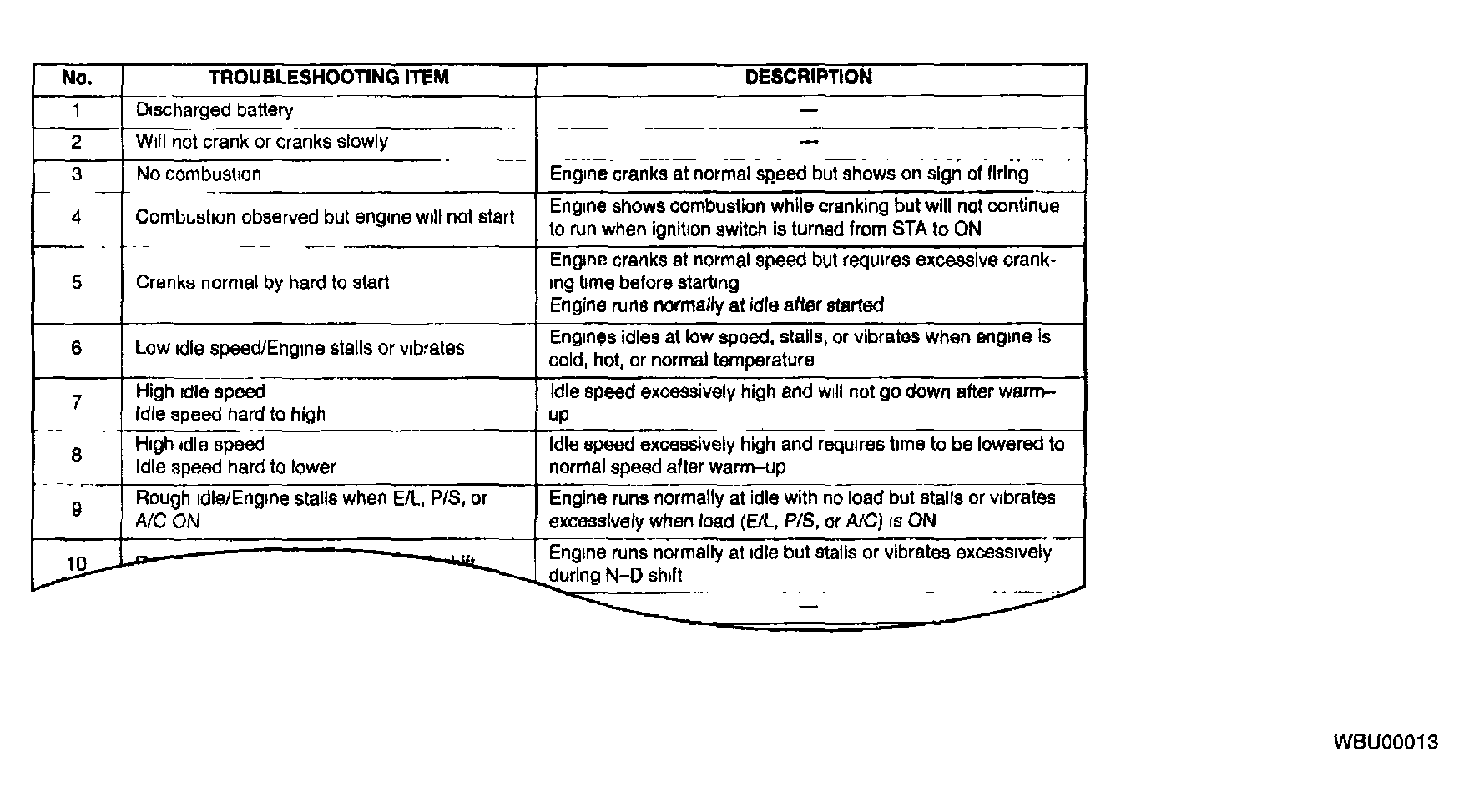

Fig 1: Diagnosis Index Chart
G04306854Courtesy of MAZDA MOTORS CORP.
