Window Adjust Switch Connector End View (C604)

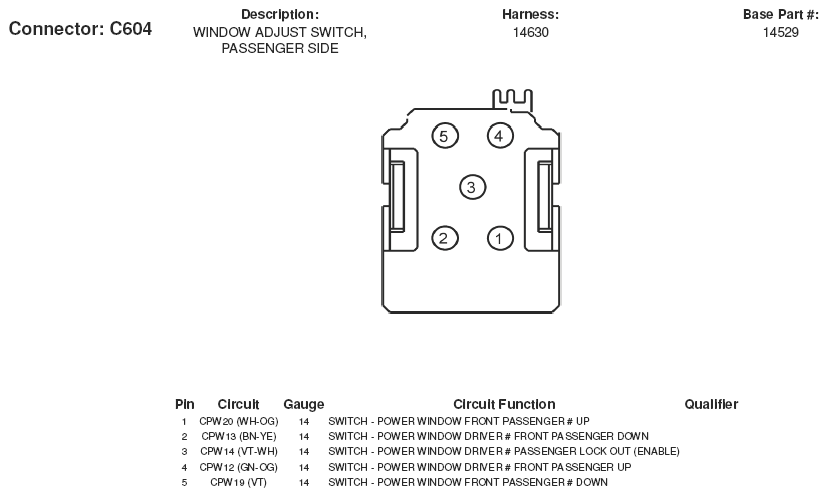

Fig 1: Window Adjust Switch Connector End View (C604)

G05169258

Courtesy of FORD MOTOR CO.
