Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)

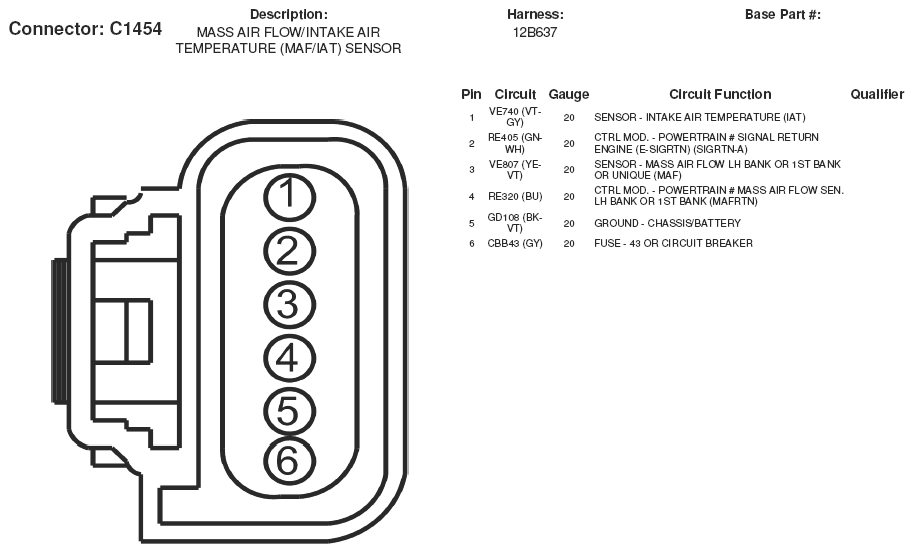

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)

G05169307

Courtesy of FORD MOTOR CO.
