Knock Sensor Connector End View (C109)

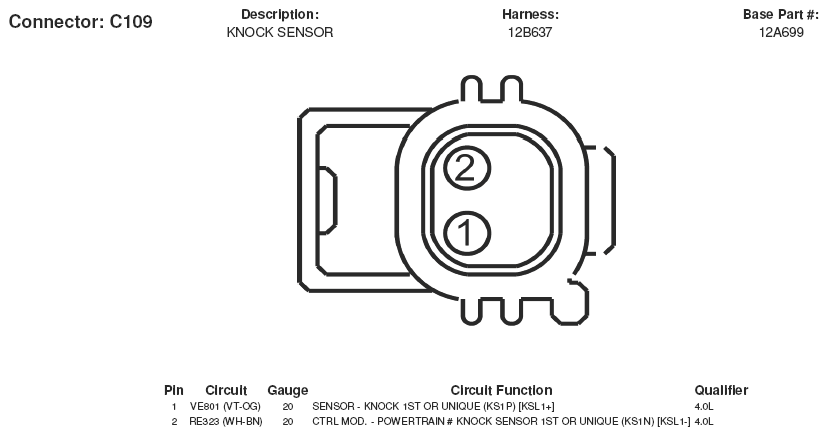

Fig 1: Knock Sensor Connector End View (C109)

G05169143

Courtesy of FORD MOTOR CO.
