Seat Backrest Front - 60 Percent Bench Disassembly / Assembly: Assembly

Fig 1: Sliding Backrest Frame Into Backrest Foam Pad

1. Slide the backrest frame into the backrest foam pad.
   Fig 2: Installing Lower End Of Backrest Foam Pad On Backrest Frame


2. Install the lower end of the backrest foam pad on the backrest frame.

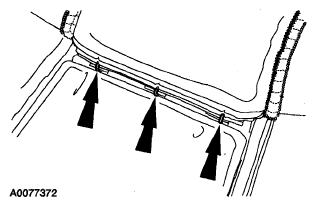

   Fig 3: Locating Hog Rings


3. Install the backrest trim cover and install all of the hog rings.
   Fig 4: Pulling Backrest Trim Cover Down


4. Pull the backrest trim cover down and secure the hook and loop fasteners to the backrest foam pad.
   Fig 5: Locating Backrest J-Clip


5. Attach the backrest J-clip.
6. Install the 60 percent seat backrest assembly. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL / INSTALLATION , .
7. Install the 60 percent armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL / INSTALLATION , .
8. Install the affected seat. See SEAT FRONT REMOVAL / INSTALLATION , .
9. Repower the SRS. See DEPOWERING AND REPOWERING , .
