Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Backrest Front - 60 Percent Bench Removal / Installation >> Notes

Seat Backrest Front - 60 Percent Bench Removal / Installation: Notes

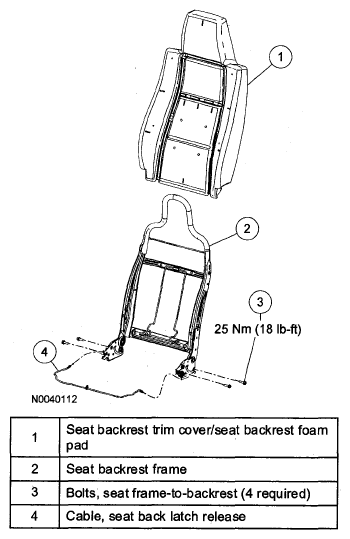

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications - 60 Percent Bench

G04931049
