Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Tailgate, Handle Lock And Latches

Tailgate, Handle Lock And Latches

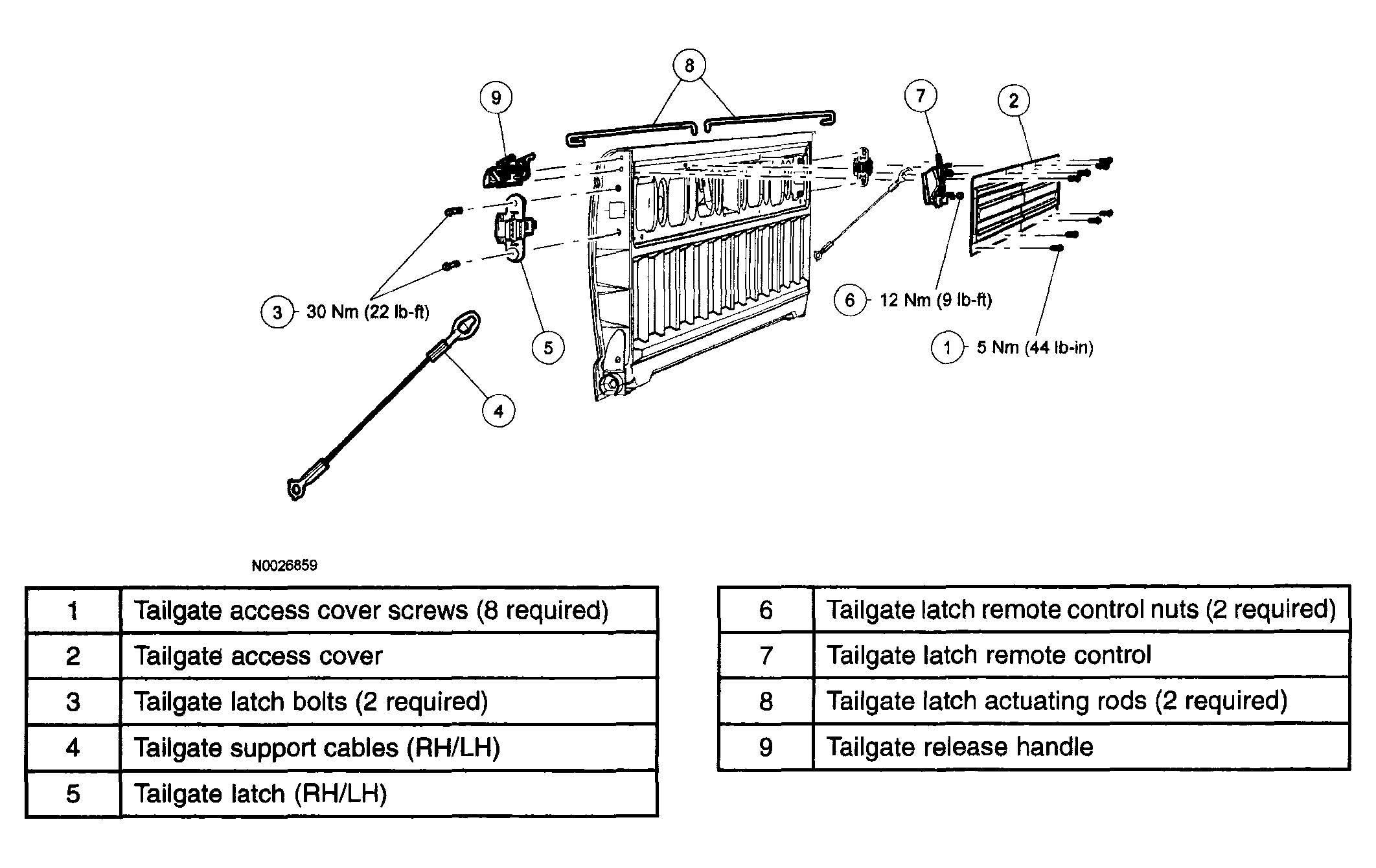

Fig 1: Identifying Tailgate, Handle Lock And Latches With Torque Specifications

G04310427

Courtesy of MAZDA MOTORS CORP.
