Seat Weight Sensor Control Module Removal/Installation [L3 With TC]

CAUTION:
  • When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION ).
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the front passenger's seat. (See FRONT SEAT REMOVAL/INSTALLATION [L3 WITH TC]. )
  4. Remove in the order indicated in the table.

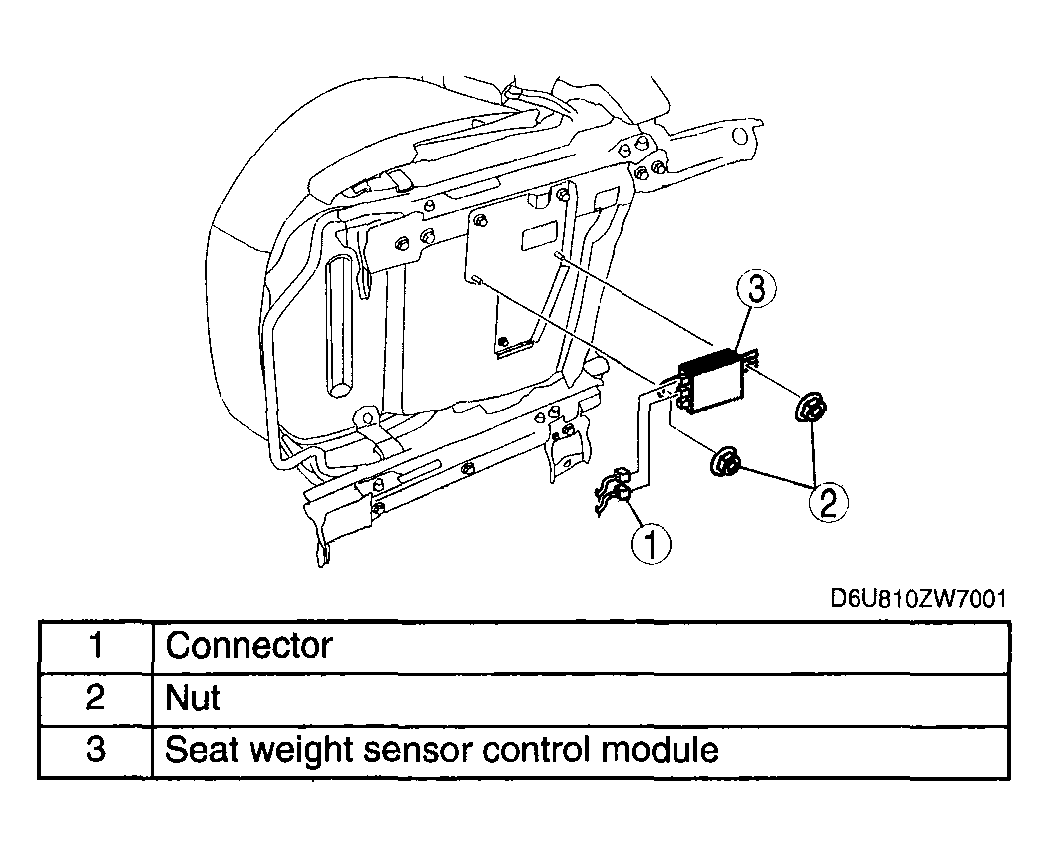

    Fig 1: Removing Seat Weight Sensor Control Module (L3 With TC)
    G04326928Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
