Climate Control Unit Removal/Installation [L3 With TC]

  1. Disconnect the negative battery cable.
  2. Remove the center panel. See CENTER PANEL UNIT REMOVAL/INSTALLATION.
  3. Remove the screws and climate control unit.
  4. Install in the reverse order of removal.

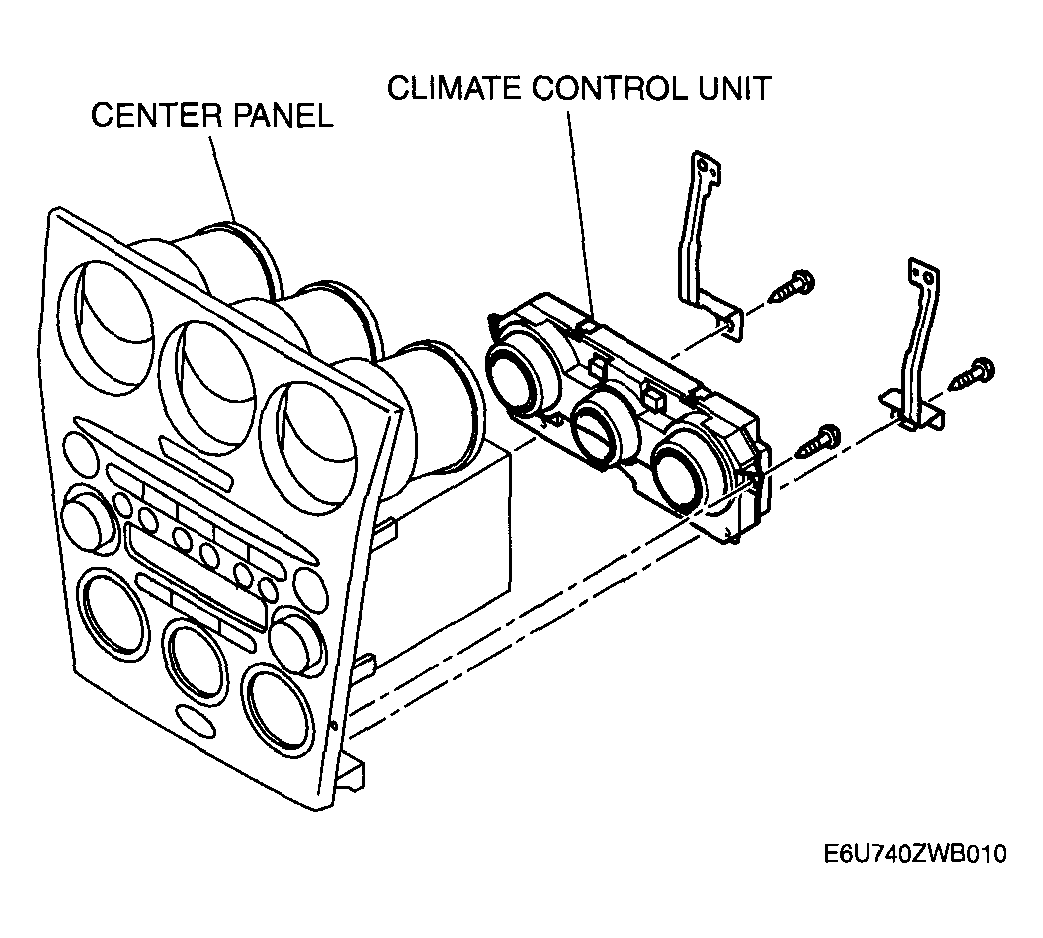

    Fig 1: Locating Climate Control Unit (L3 With TC)
    G04326820Courtesy of MAZDA MOTORS CORP.
