Manual Transaxle Installation Note
WARNING: This page is about a different variant/trim than selected.

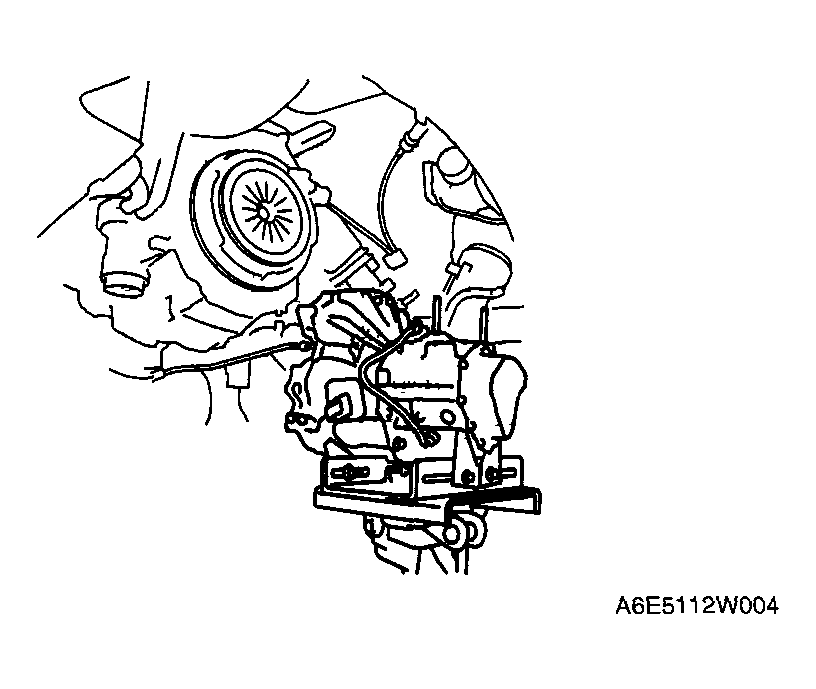

- Set the transaxle on a jack and lift into place.
- Install the transaxle mounting bolts.
- Adjust the SST
(49 C017 5A0) so that the engine is located at the specified position.
Courtesy of MAZDA MOTORS CORP.
