Windshield Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When the ignition switch is turned to the ON position, and the wiper and washer switch is in the AUTO position, the windshield wipers may operate automatically in the following cases. Always turn the ignition switch, and the wiper and washer switch off before handling the windshield wipers; otherwise a pinched hand or fingers could result in injury or a wiper system malfunction:
    • The upper part of the windshield rain sensor is touched.
    • The windshield receives an impact.
    • The rain sensor receives an impact from the cabin.
  1. Remove in the order indicated in the illustration.

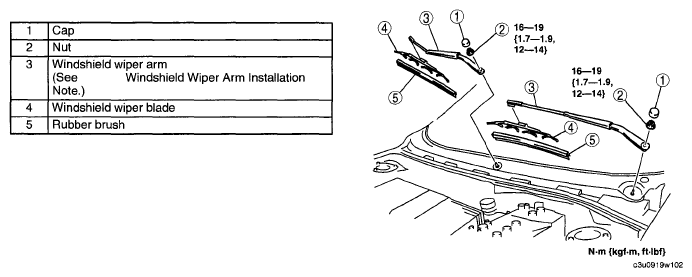

    Fig 1: Windshield Wiper Arm And Blade Replacement Components With Torque Specifications
    G04957062Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT ).
