A/C Unit Disassembly/Assembly [Full-Auto Air Conditioner]: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

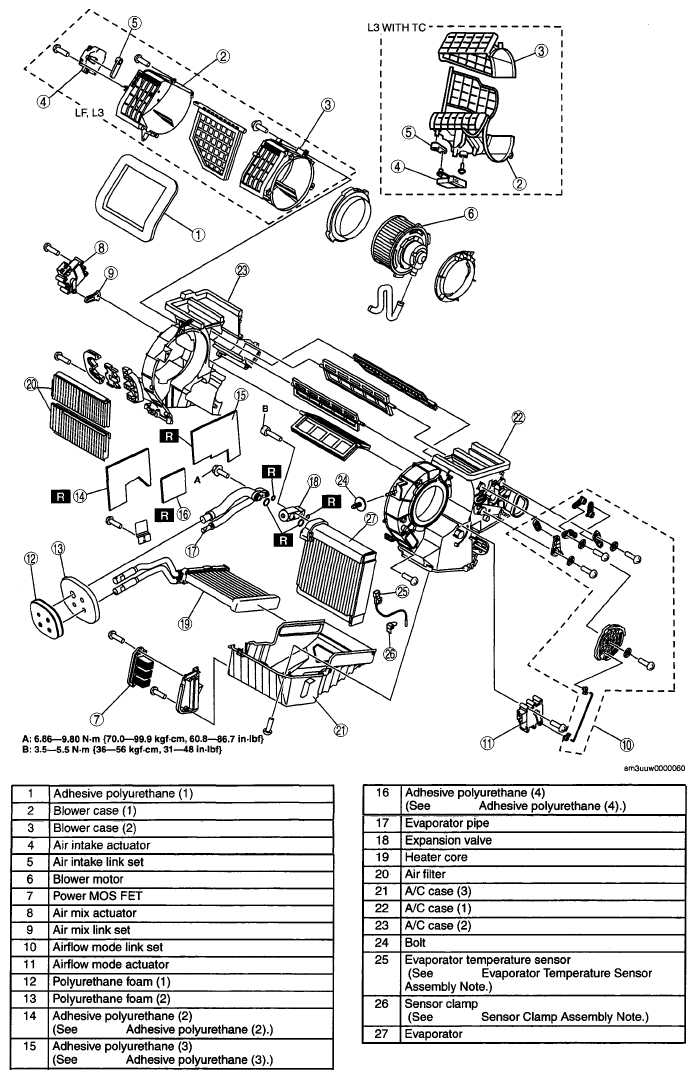

  Fig 1: A/C Unit Components - Full-Auto Air Conditioner With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
