Climate Control Unit Disassembly/Assembly [Full-Auto Air Conditioner]

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

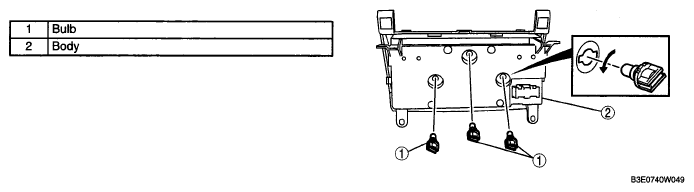

    Fig 1: Identifying Bulb And Body
    G04956402Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
