Refrigerant Line Removal Note
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

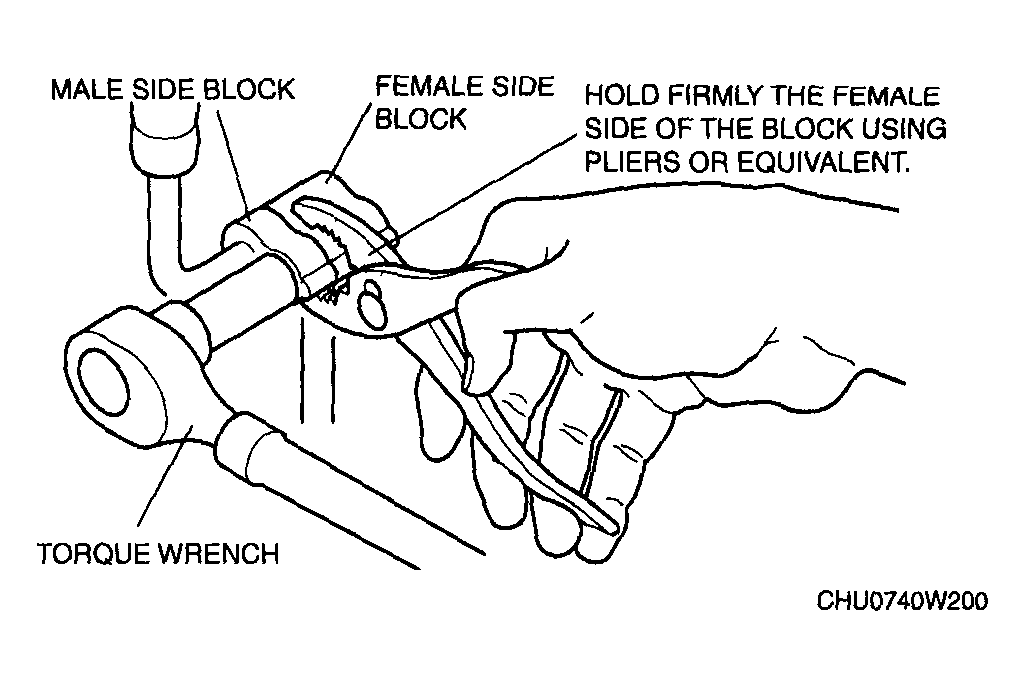

- Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, and then remove the connection bolt or nut.
Courtesy of MAZDA MOTORS CORP.
