Airflow Mode Main Link Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION .)
  4. Remove the airflow mode main link as shown in Fig 1 .
  5. Install in the reverse order of removal.

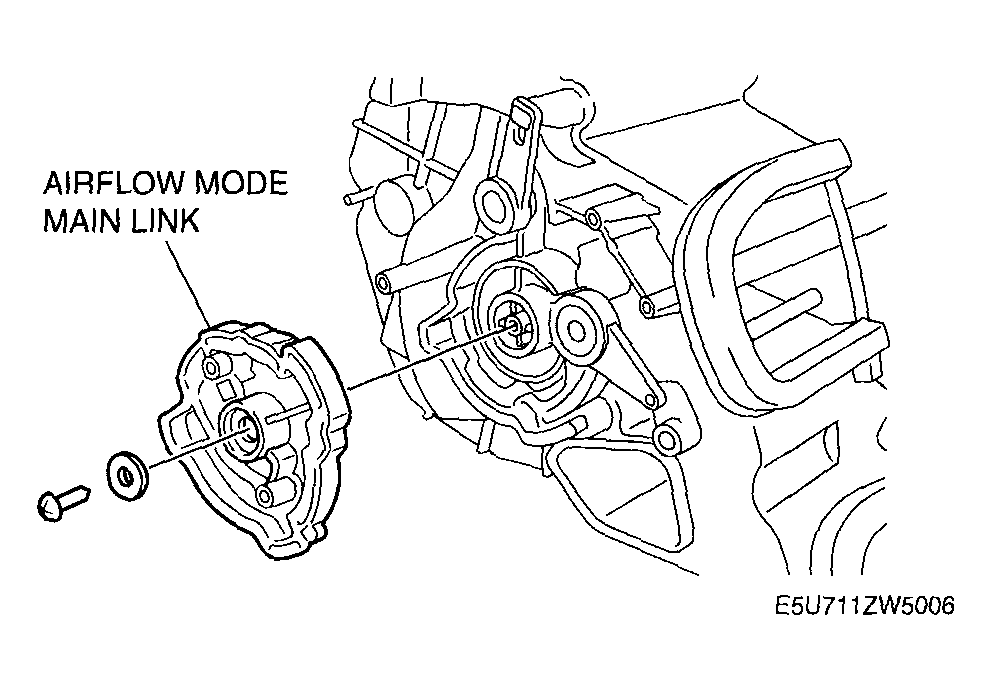

    Fig 1: Removing Airflow Mode Main Link
    G04318826Courtesy of MAZDA MOTORS CORP.
