Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in Fig 1.

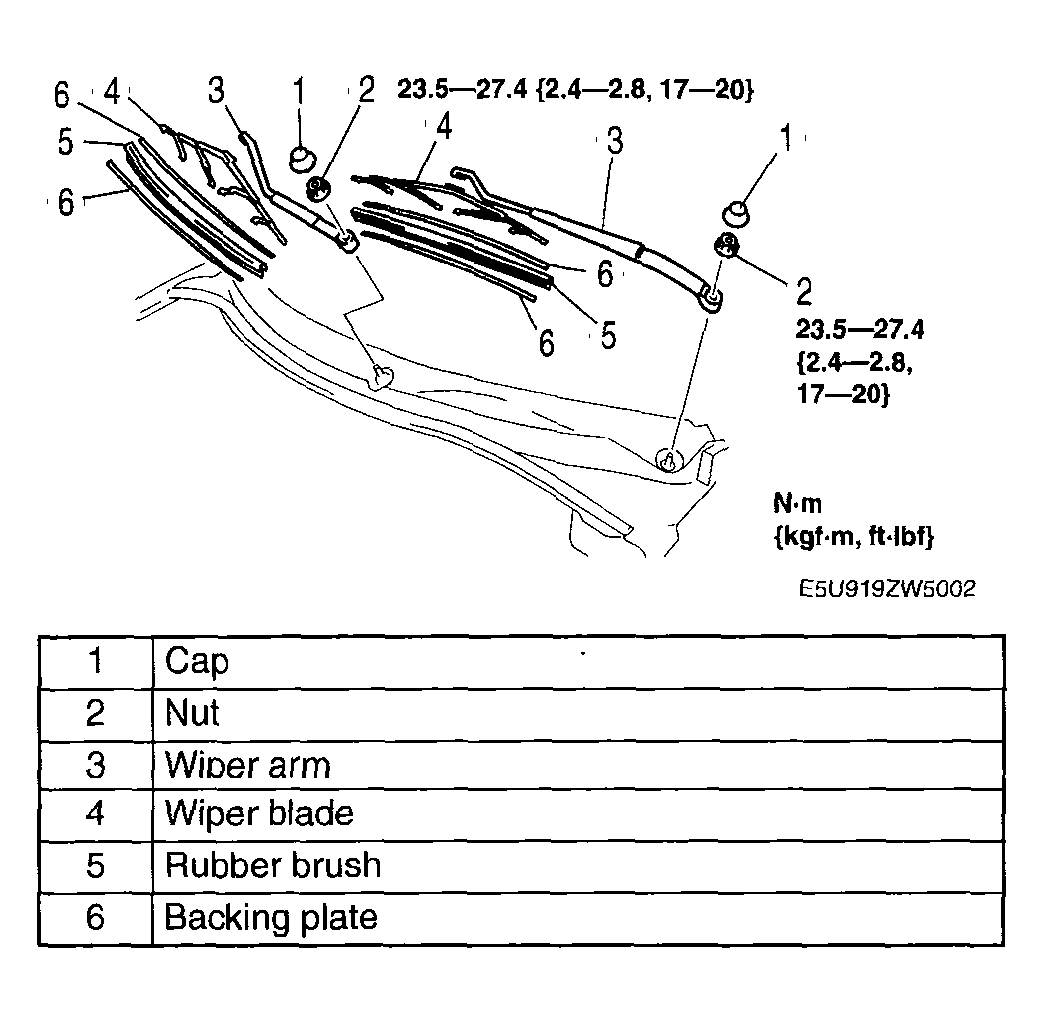

    Fig 1: View Of Wiper Arm And Blade Components With Torque Specifications
    G04323743Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the wiper arm and blade. (See WIPER ARM AND BLADE ADJUSTMENT  .)
