Keyless Entry System Wiring Diagram

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

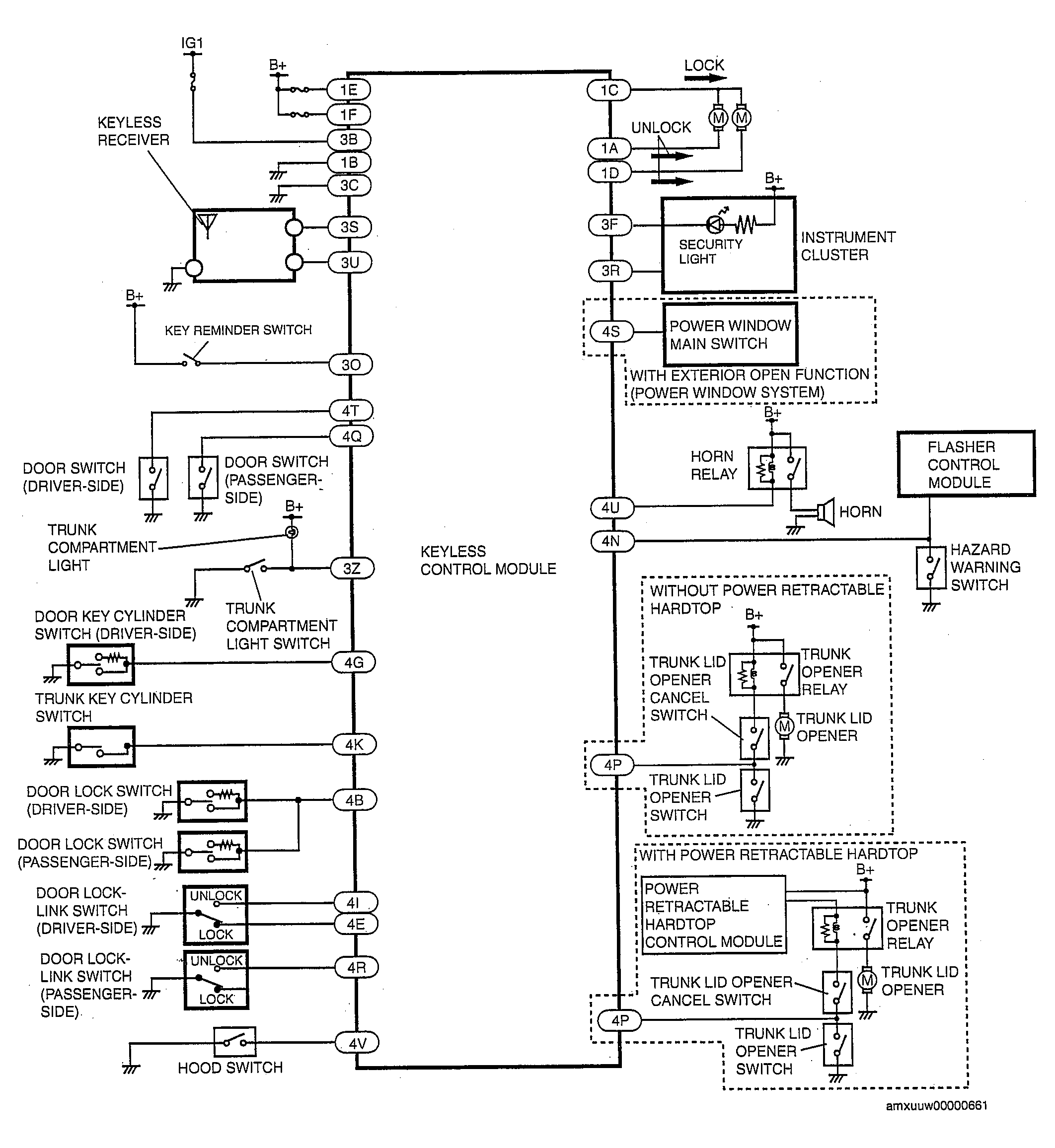

Fig 1: Keyless Entry System Wiring Diagram
G00432136Courtesy of MAZDA MOTOR CORP.
