Symptom Troubleshooting [Abs/TCS]
- Verify the symptoms, and perform troubleshooting according to the appropriate number.

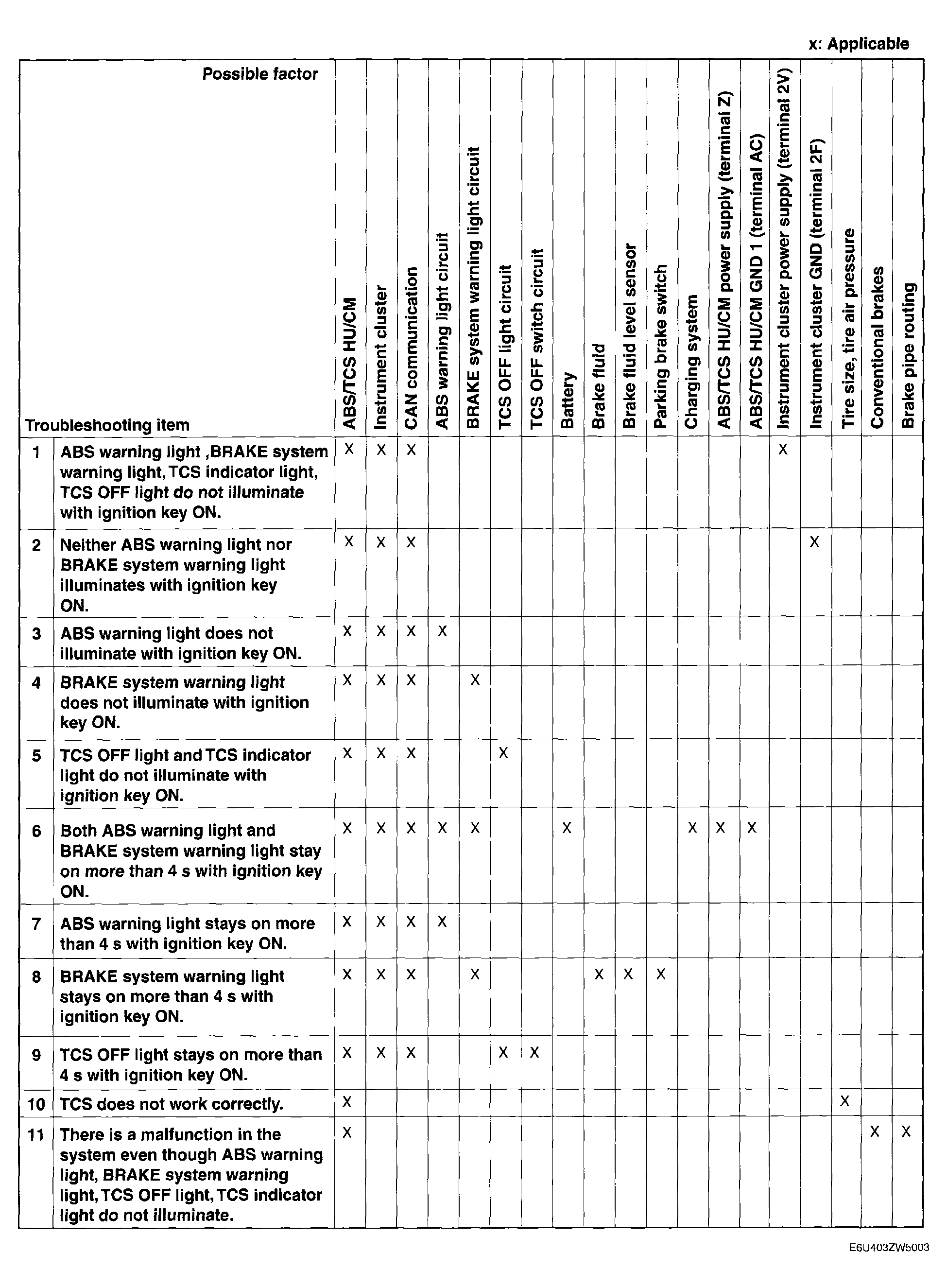

SYMPTOM TROUBLESHOOTING [ABS/TCS] CHART
| No. | Symptom |
|---|---|
| 1 | ABS warning light, BRAKE system warning light, TCS indicator light, TCS OFF light do not illuminate with ignition key to ON. |
| 2 | Neither ABS warning light nor BRAKE system warning light illuminate with ignition key to ON. |
| 3 | ABS warning light does not illuminate with ignition key to ON. |
| 4 | BRAKE system warning light and TCS indicator light do not illuminate with ignition key to ON. |
| 5 | TCS OFF light does not illuminate with ignition key to ON. |
| 6 | Both ABS warning light and BRAKE system warning light stay on more than 4 s with ignition key to ON. |
| 7 | ABS warning light stays on more than 4 s with ignition key to ON. |
| 8 | BRAKE system warning light stays on more than 4 s with ignition key to ON. (Parking brake is released). |
| 9 | TCS OFF light stays on more than 4 s with ignition key to ON. |
| 10 | TCS does not work correctly. |
| 11 | There is a malfunction in the system even though ABS warning light, BRAKE system warning light, TCS OFF light, TCS indicator light do not illuminate. |
