Abs/TCS System Wiring Diagram

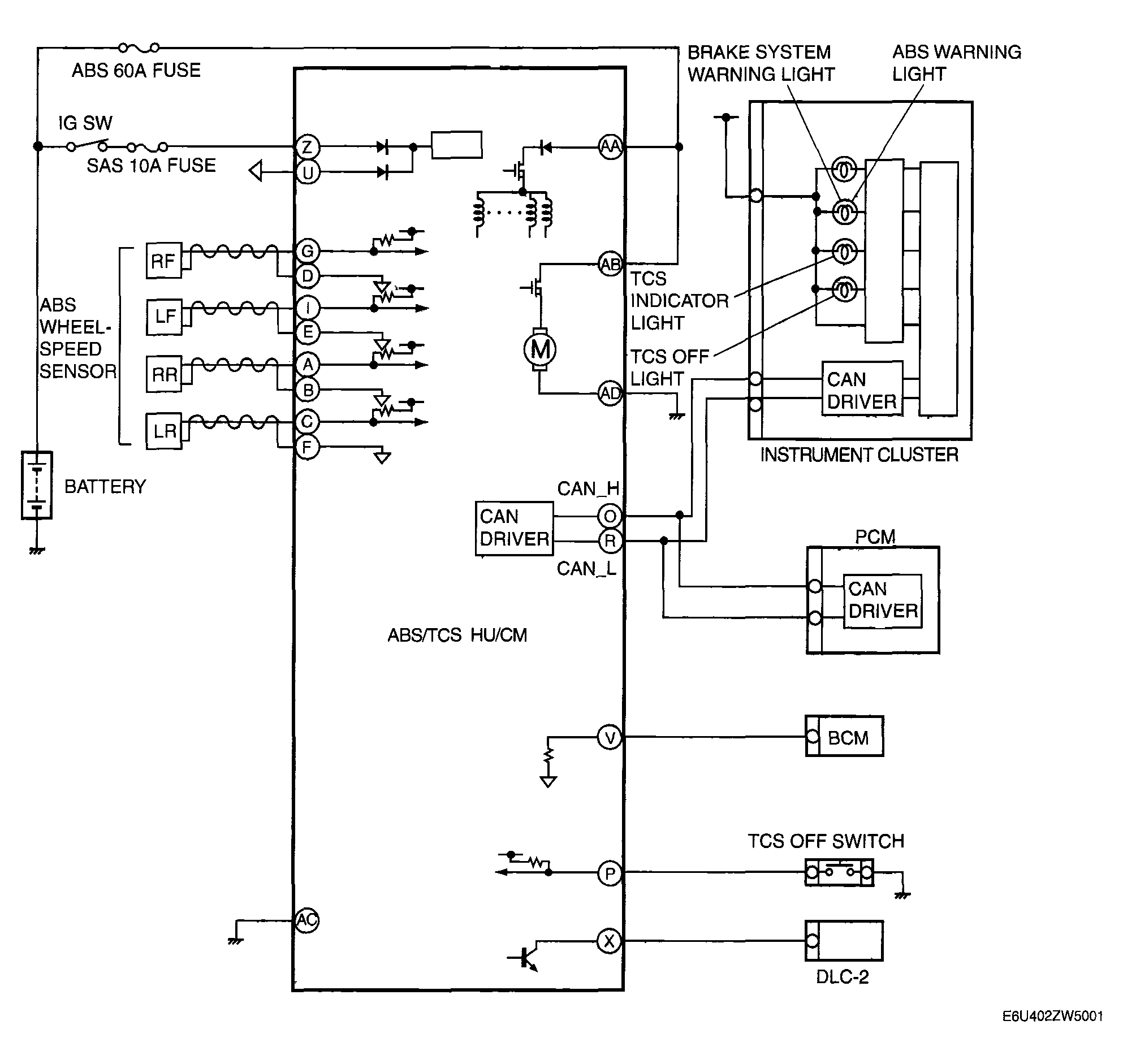

Fig 1: ABS/TCS System Wiring Diagram

G04325849

Courtesy of MAZDA MOTORS CORP.
