Car Navigation System

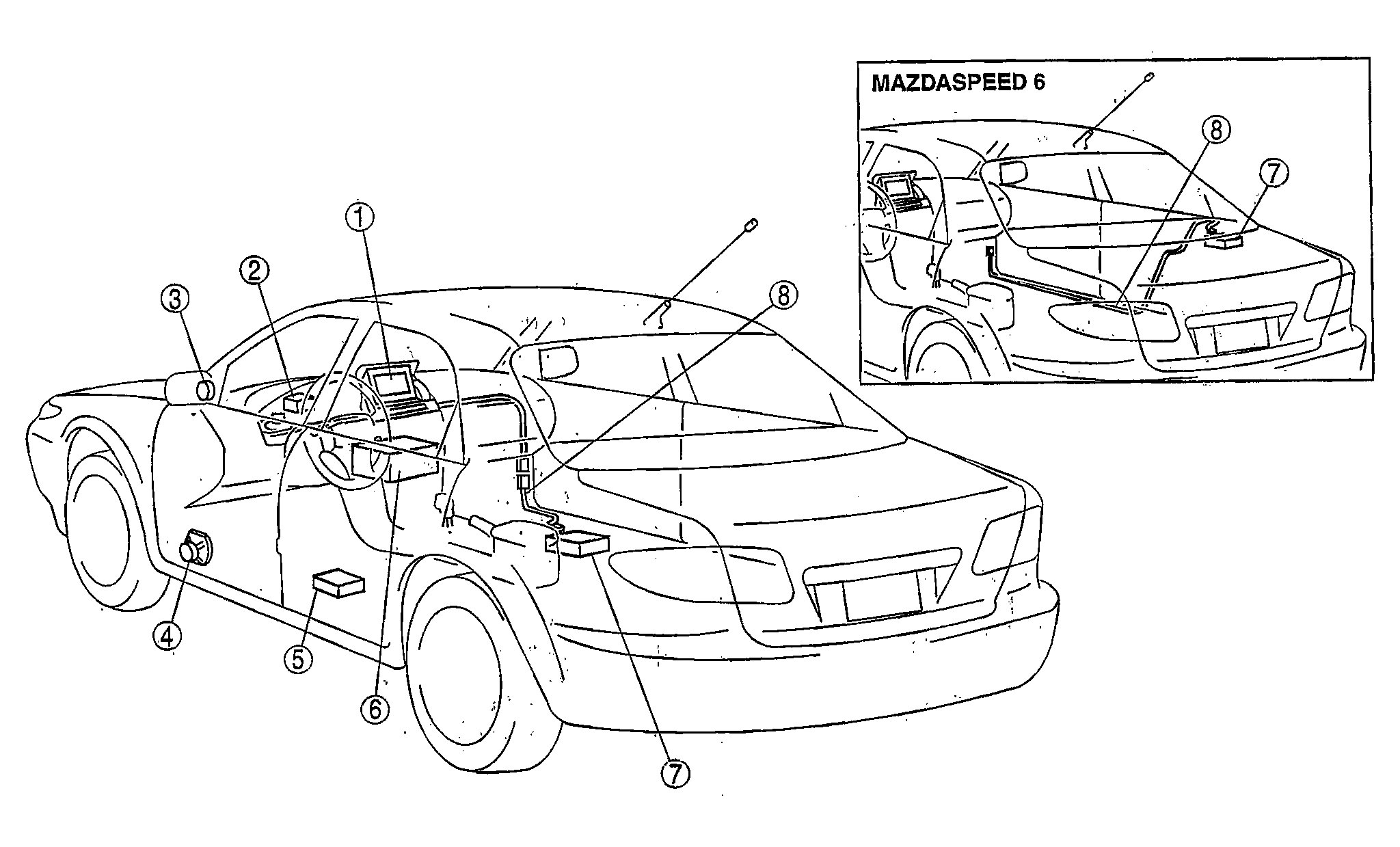

Fig 1: Locating Car Navigation System Components
G00455231Courtesy of MAZDA MOTORS CORP.
Callouts For Car Navigation System

1 LCD unit
2 GPS antenna
3 Tweeter
4 Front door speaker
5 Audio amplifier
6 Audio unit
7 Car-navigation unit
8 GPS antenna feeder
