Seat Weight Sensor Control Module Connector End View

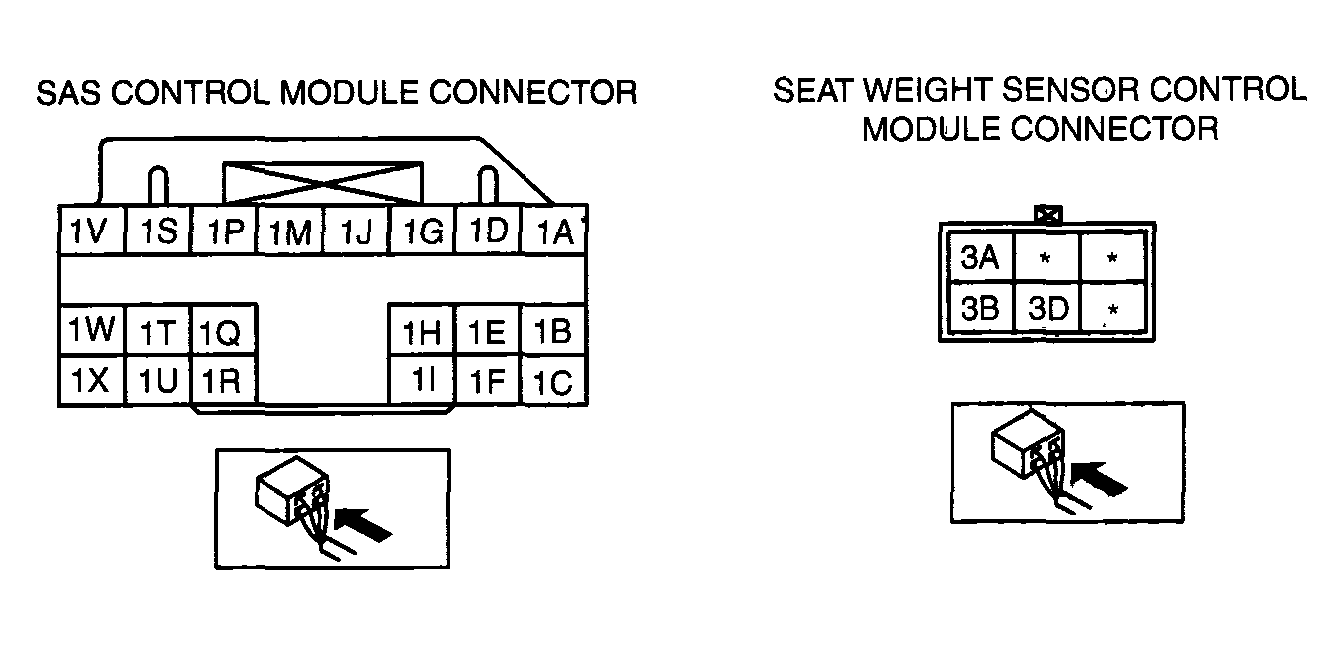

Fig 1: Seat Weight Sensor Control Module Connector End View

G04326897

Courtesy of MAZDA MOTORS CORP.
