Front Door Quarter Glass Removal/Installation

  1. Fully open the front door glass.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  3. Disconnect the negative battery cable.
  4. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  5. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  6. Remove the bolts and screw.
  7. Remove the front door glass guide and glass run channel as a single unit.

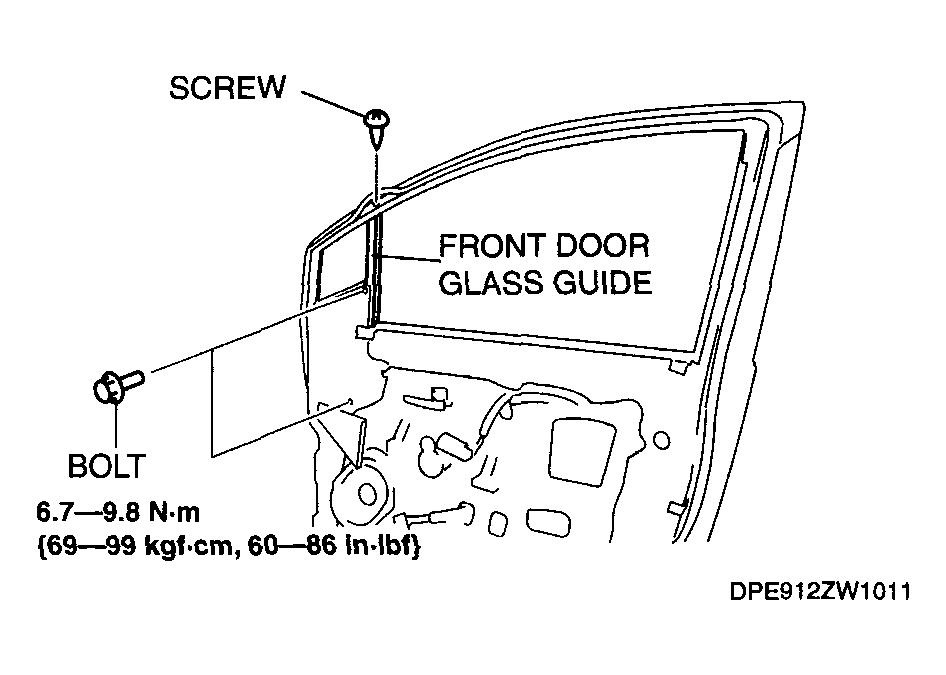

    Fig 1: Front Door Glass Guide & Torque Specification
    G04317110Courtesy of MAZDA MOTORS CORP.
  8. Remove the front door quarter glass.
  9. Install in the reverse order of removal.
    Fig 2: Removing Front Door Quarter Glass
    G04317111Courtesy of MAZDA MOTORS CORP.
