Hood Latch And Release Lever Removal/Installation: Notes

  1. Remove in the order indicated in the table, refer to illustration, refer to illustration.
  2. Install in the reverse order of removal.
  3. Adjust the hood. (See HOOD ADJUSTMENT ).

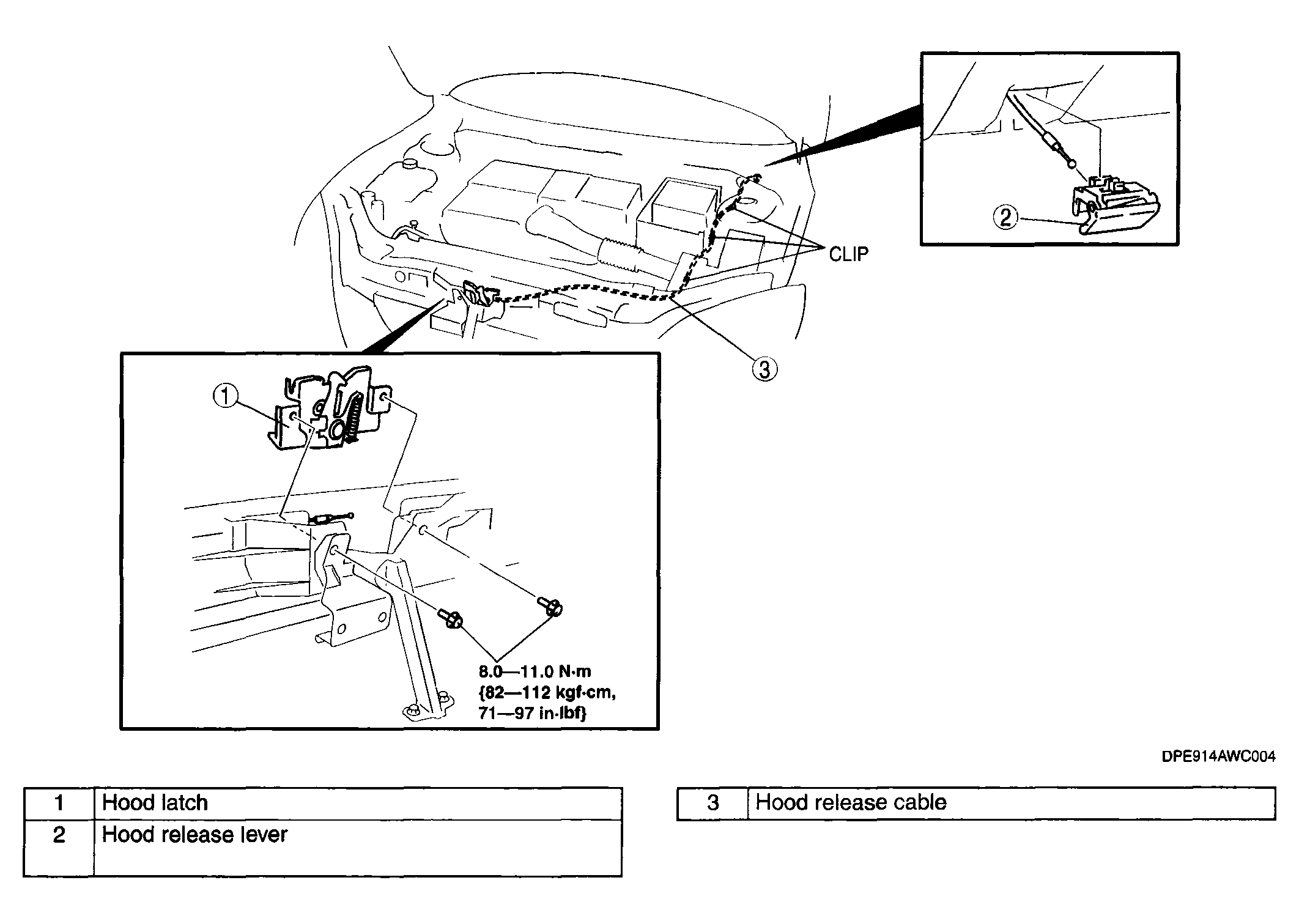

    Fig 1: Hood Latch & Release Lever Mounting Bolt Torque Specification
    G04317211Courtesy of MAZDA MOTORS CORP.
