Front Door Latch And Lock Actuator Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
    5. Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION ).
    6. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table, refer to illustration.

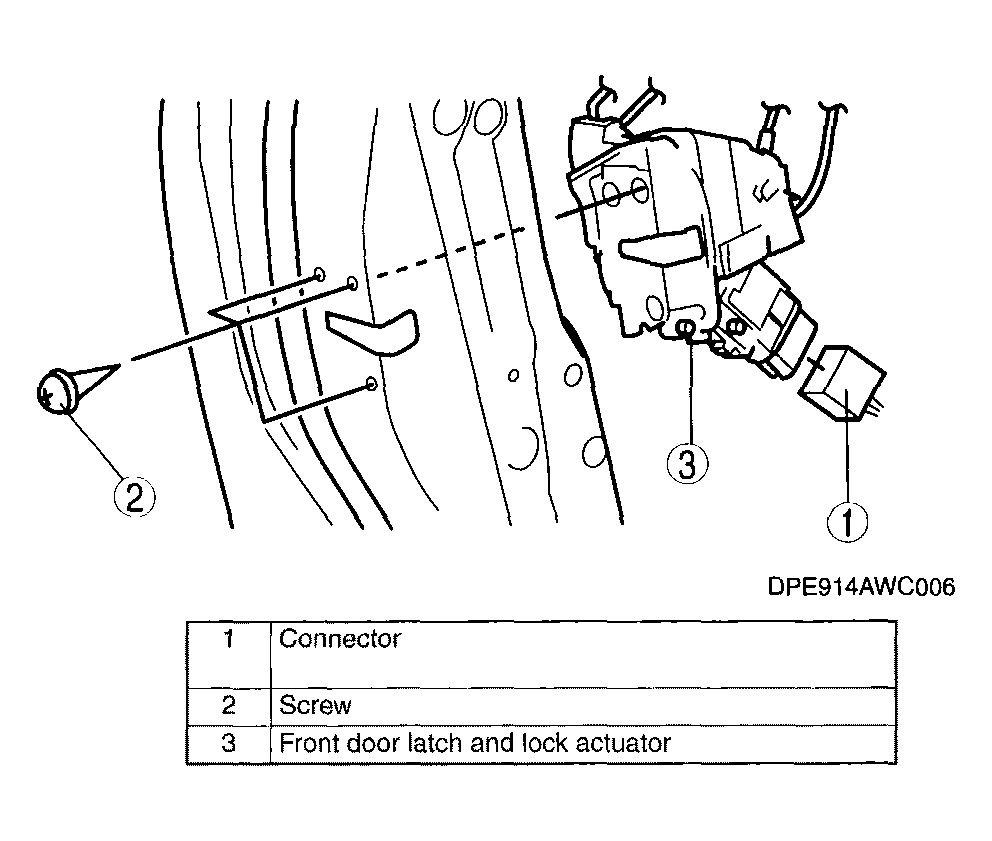

    Fig 1: Removing/Installing Front Door Latch And Lock Actuator
    G04317219Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
