Air Bag System (SAS Control Module) Connector End View

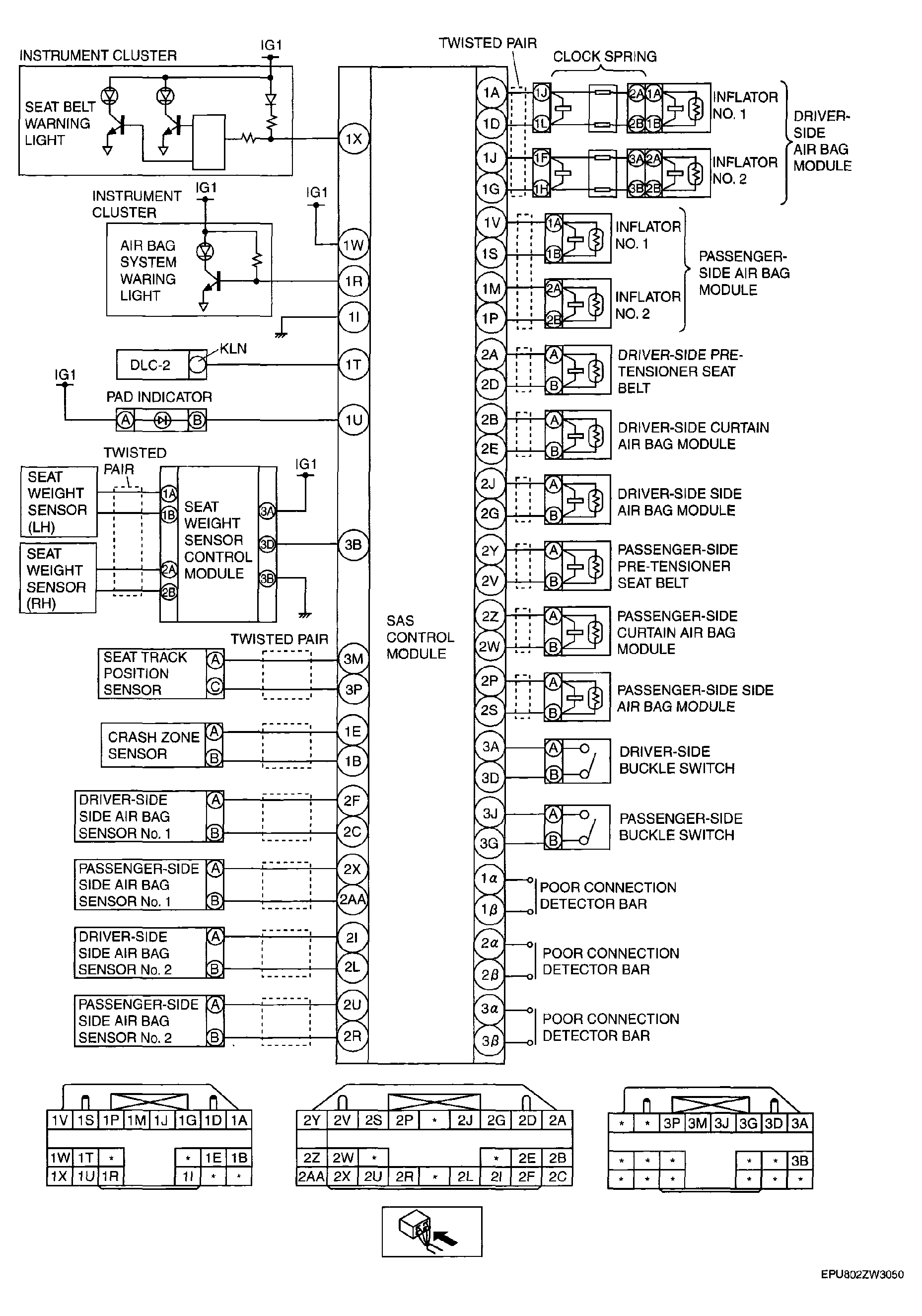

Fig 1: Air Bag System (SAS Control Module) Connector End View

G04316796

Courtesy of MAZDA MOTORS CORP.
