Circuit Open/Short Inspection

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Cruise Control Switch Connector Terminals
G04955179Courtesy of MAZDA MOTORS CORP.

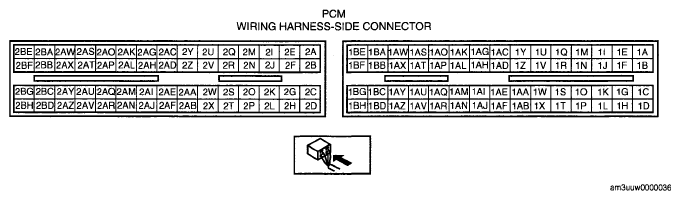

Fig 2: PCM Connector Terminal Identification
G04955180Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Disconnect the cruise control switch connector. (See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION .)
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
