DTC P0500: Notes
DTC P0500 (LF, L3) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0500 |
VSS circuit problem |
| DETECTION CONDITION |
With ABS HU/CM
- If an error in the wheel speed signal from the ABS HU/CM is detected by CAN when the following conditions are met:
- Shift range in except P, N or R range (ATX)
- Neutral switch and clutch switch are OFF (MTX)
- Load is above 40%
- Engine speed is 2, 000 rpm or above
- Brake switch is OFF
Without ABS HU/CM MTX
- Vehicle speed signal from vehicle speed sensor is below 3.7 km/h {2.3 mph}
when following conditions are met:
- Neutral switch and clutch switch are OFF
- Load is above 40%
- Engine speed is 2, 000 rpm or above
- Brake switch is OFF
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
With ABS HU/CM
- Front ABS wheel-speed sensor malfunction
- ABS HU/CM malfunction
- Connector or terminal malfunction
- PCM malfunction
Without ABS HU/CM MTX
- VSS malfunction
- Connector or terminal malfunction

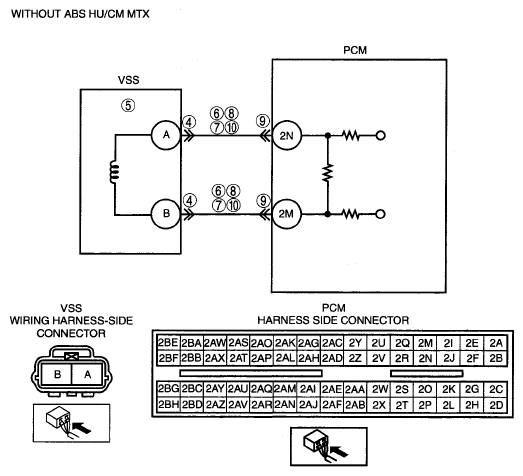

- Open circuit between PCM terminal 2N and VSS terminal A
- Open circuit between PCM terminal 2M and VSS terminal B
- Short to ground between PCM terminal 2N and VSS terminal A
- Short to ground between PCM terminal 2M and VSS terminal B
- Short to power between PCM terminal 2N and VSS terminal A
- Short to power between PCM terminal 2M and VSS terminal B
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
