Except For California Emission Regulation Applicable Model: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION ).
  2. Disconnect the negative battery cable.
  3. Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).

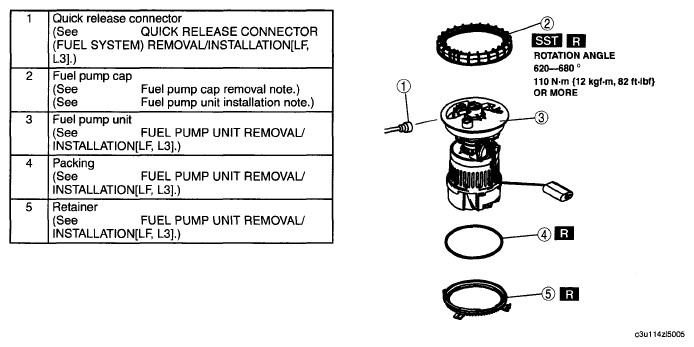

    Fig 1: Fuel Pump Unit, Retainer, Quick Release Connector And Fuel Pump Cap With Torque Specifications
    G04954818Courtesy of MAZDA MOTORS CORP.
