DTC P2102: Notes
DTC P2102 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2102 |
Throttle actuator circuit low input |
| DETECTION CONDITION |
- PCM monitors the throttle actuator circuit current. If the PCM detects that the throttle actuator circuit current is excessively low, the PCM determines that the throttle actuator circuit was a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in PCM memory.
|
| POSSIBLE CAUSE |

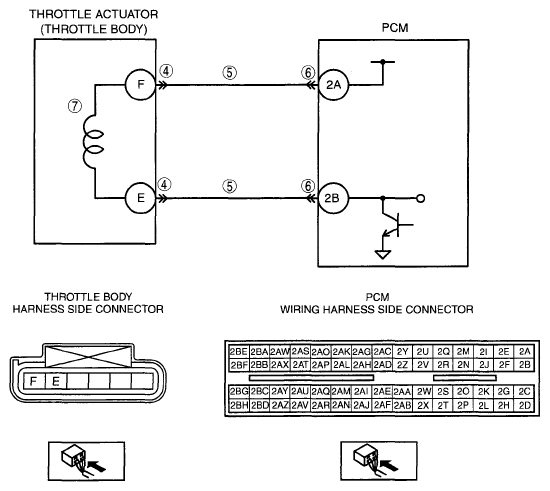

- Short to ground circuit between throttle body terminal F and PCM terminal 2A
- Short to ground circuit between throttle body terminal E and PCM terminal 2B
- Poor connection of throttle body or PCM connector
- Throttle actuator malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
